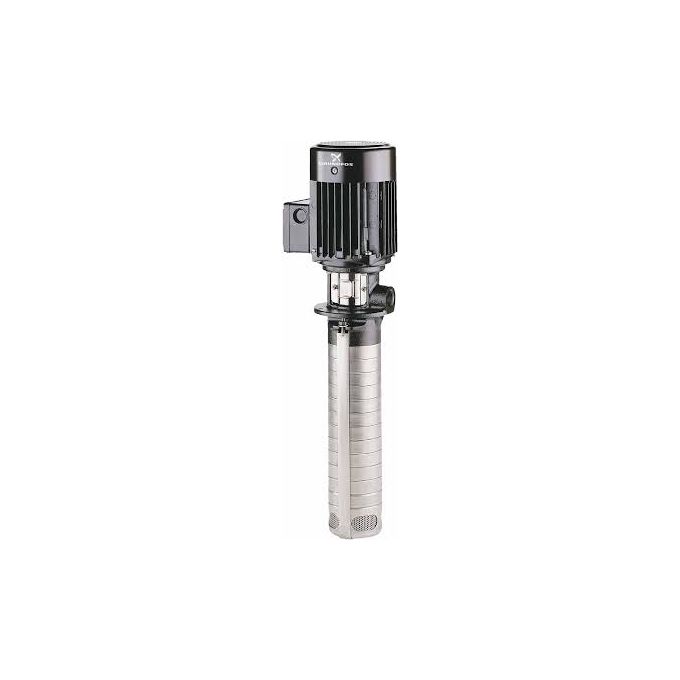

Grundfos - SPK 4-3/3 Multi-Stage Centrifugal Immersible Pump - 415V - 3 Phase

Name: Grundfos - SPK 4-3/3 Multi-Stage Centrifugal Immersible Pump - 415V - 3 Phase
Brand: Grundfos
SKU: GR-39GH0103
Price: 812.16 GBP
Availability: InStock

Part Number:

GR-39GH0103

The Grundfos - SPK 4-3/3 Multi-Stage Centrifugal Immersible Pump - 415V - 3 Phase is a pump designed to move water or liquid through the system for its intended application.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,128.00 RRP £812.16 £676.80

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Grundfos - SPK 4-3/3 Multi-Stage Centrifugal Immersible Pump - 415V - 3 Phase - GR-39GH0103

A vertical multi-stage centrifugal pumps designed for fluid transfer of cooling lubricants for machine tools, condensate transfer and similar applications.

The pumps are designed to be mounted on top of tanks with the chamber stack immersed in the fluid medium being conveyed. The pumps come in various pump sizes and have various numbers of stages to provide the flow, the pressure and the system installation length required. T

O meet specific depths of tanks or containers, the immersible length of the pump can be varied using empty chambers.

The pumps consist of two main components: The motor and the pump unit. The motor is a Grundfos standard MG motor designed to EN standards.

The pump unit comprises the following components: optimised hydraulics, various types of connections, a motor stool, a given number of chambers and various other parts.

Real-world product applications

Pressure boosting for water supply systems
Supporting irrigation and washdown water delivery
Supplying water to buildings and equipment

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£676.80
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	415V
AC Power	Three Phase
Flow Rate	83l/min
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Immersible
Next Day Delivery	No
Manufacturers Part Number	39GH0103
