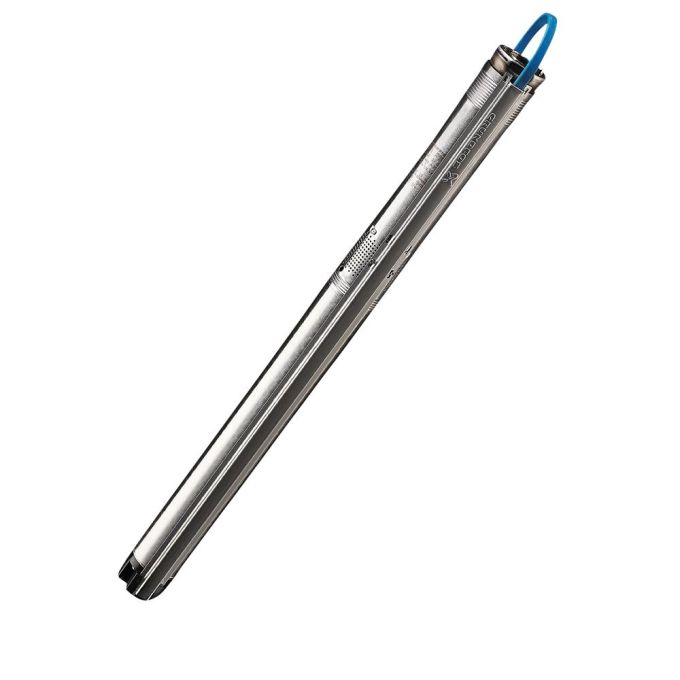

Grundfos - SQE3-30 Submersible Borehole Pump - 240V - Single Phase - 73 Lt/min.

Name: Grundfos - SQE3-30 Submersible Borehole Pump - 240V - Single Phase - 73 Lt/min.
Brand: Grundfos
SKU: 96510156
Price: 1249.34 GBP
Availability: InStock

Part Number:

96510156

SQE 3-30 3" multi-stage, submersible pump unit designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,735.20 RRP £1,249.34 £1,041.12

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

SQE 3-30
3" multi-stage, submersible pump unit designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has "floating" impellers, each with its own tungsten carbide/ceramic bearing.

The pump features soft starting and protection against dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature.

The motor is a single-phase motor of the permanent magnet rotor type ensuring optimum efficiency within a wide load range. The motor is fitted with a replaceable end cover with socket.

Suitable for: Domestic ground water intake, Domestic water pressure boosting, Ground water intake

Real-world product applications

Supplying water from boreholes or wells to storage tanks
Feeding water to a buildings supply system
Supporting irrigation and agricultural water delivery
Transferring groundwater to distribution systems
Providing water for general on-site supply duties

Key Product Features

Length of cable: 1.5 m
Net weight: 4.42 kg
Mains frequency: 50 Hz
Approvals: CE,PCBC,RCM,EAC,CN Rohs Exempt,Morocco,UKCA,SEPRO
Rated Head: 26 m
Rated Flow: 3 m³/h
Product Voltage: 1 x 200-240 V
Temperature Liquid Range: 0 .. 35 °C
Pumped Liquid: Water
Maximum Operating Pressure: 15 bar
Impeller Material: Composite

This is a Grundfos Submersible pump suitable for installation below liquid level.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£1,041.12
Manufacturer	Grundfos
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	2
Electrical supply	240V
AC Power	Single Phase
Cable length	1.5m
Flow Rate	73 Ltr/min
Max Head	26m
Water type	Clean or Discoloured
Pump Type Filter	Submersible
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Minimum Borehole Diameter	76 mm
Outlet Connection	Rp1 1/4
Manufacturers Part Number	96510156
