Grundfos - TP 65-60/2 A-F-A-BQQE Commercial Circulator Pump - 415V

Name: Grundfos - TP 65-60/2 A-F-A-BQQE Commercial Circulator Pump - 415V
Brand: Grundfos
SKU: 98509608
Price: 1689.48 GBP
Availability: InStock

Part Number:

98509608

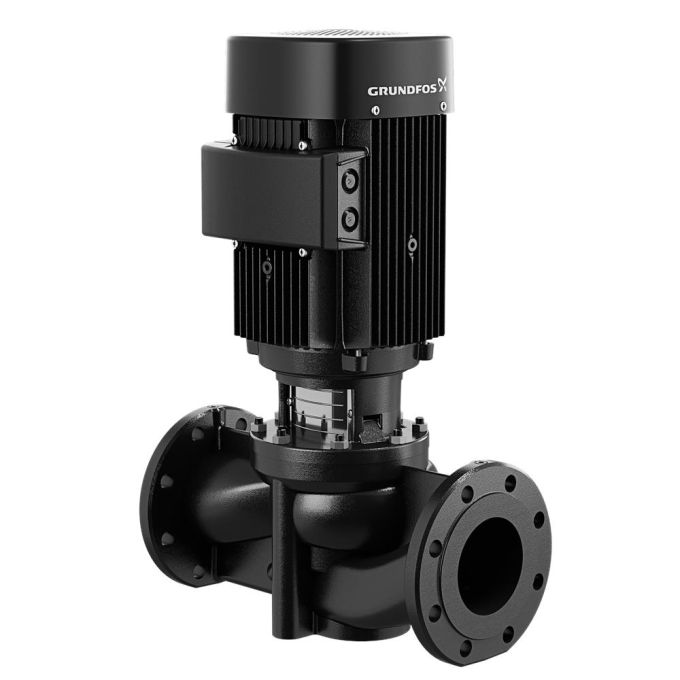

TP 65-60/2 A-F-A-BQQE-EW1 Single-stage, close-coupled, volute Pump with in-line suction and discharge ports of identical diameter.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,599.20 RRP £1,689.48 £1,407.90

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

TP 65-60/2 A-F-A-BQQE-EW1

Single-stage, close-coupled, volute Pump with in-line suction and discharge ports of identical diameter. The Pump is of the top-pull-out design, i.e. the power head (motor, Pump head and impeller) can be removed for maintenance or service while the Pump housing remains in the pipework. The Pump is equipped with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10 DIN flanges (EN 1092-2 and ISO 7005-2). The Pump is equipped with a fan-cooled asynchronous motor.

Suitable for Commercial air conditioning,
This product's housing material is Cast Iron
The impeller is manufactured from Stainless Steel
Maximum operating pressure: 10 Bar.
Temperature liquid range: -25 .. 120 °C.

Real-world product applications

Circulating water around closed-loop pipework systems
Maintaining flow through distribution circuits
Supporting recirculation in building services installations
Keeping consistent flow through equipment or pipe runs
Assisting with loop circulation for system efficiency

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£1,407.90
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	415V
AC Power	Three Phase
Speed	Fixed
Flow Rate	583 Ltr/min
Max Head	6m
Water type	Clean or Discoloured
Pump Type Filter	Circulator Pump
Switch	None
Duty Type	Commercial
Next Day Delivery	No
Port To Port	340mm
Manufacturers Part Number	98509608
