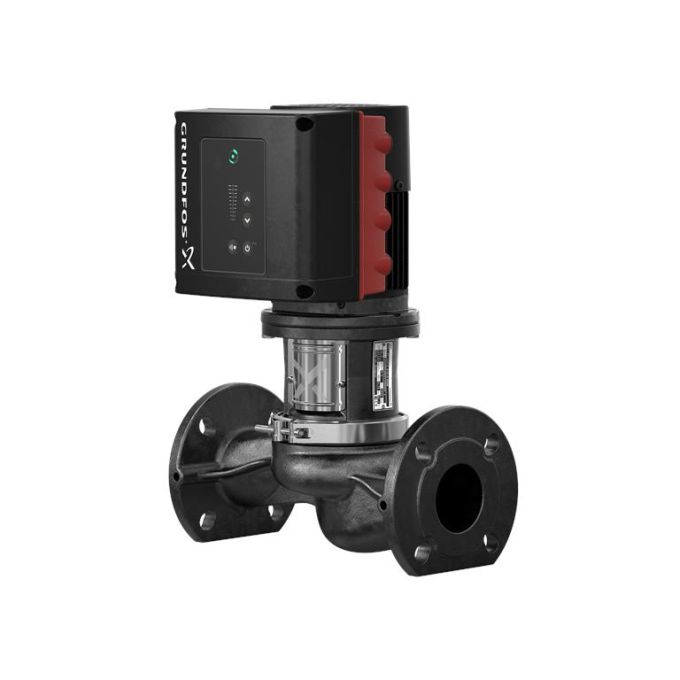

Grundfos - TPE2 80-150 N-A-F-A-BQQE-HAB Inline Single Stage Circulator Pump - 240V - Single Phase - Cast Iron

Single-stage, close-coupled, volute (centrifugal) pump unit with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The shaft seal is according to EN 12756. All pipework connection is via PN 10 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is equipped with a fan-cooled, permanent-magnet synchronous motor. The pump is equipped with a fan-cooled asynchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.

Suitable for: Commercial air conditioning

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Net weight: 35.2 kg
• Mains frequency: 50 / 60 Hz
• Rated Head: 9.9 m
• Max Head: 150 dm
• Rated Flow: 44.5 m³/h
• Product Voltage: 1 x 200-240 V
• Temperature Liquid Range: -25 .. 120 °C
• Pumped Liquid: Water
• Port to Port Length: 360 mm
• Connection Size: DN 80
• Type of connection: DIN
• Maximum Operating Pressure: 10 bar
• Impeller Material: Composite
• Pump Housing Material: Cast Iron

This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.
