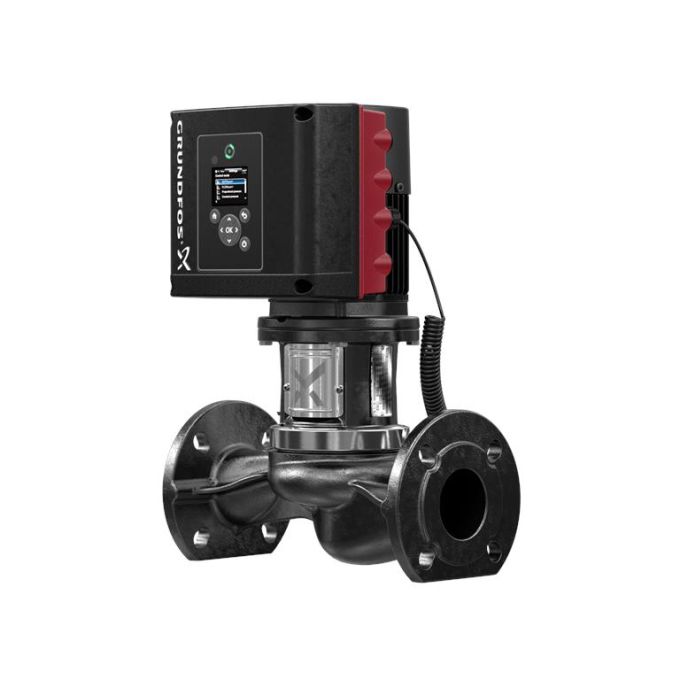

Grundfos - TPE3 80-150 S-A-F-A-BQQE-HAB Inline Single Stage Circulator Pump - 240V - Single Phase - Cast Iron

The Grundfos - TPE3 80-150 S-A-F-A-BQQE-HAB Inline Single Stage Circulator Pump - 240V - Single Phase - Cast Iron is a circulator pump designed to circulate water through heating, cooling, or hot water systems.

With single-phase power, 240V supply and a cast iron construction, it is built to support efficient system movement and dependable temperature control.

Single-stage, close-coupled, volute Pump with in-line suction and discharge ports of identical diameter. The Pump is of the top-pull-out design, i.e. the power head (motor, Pump head and impeller) can be removed for maintenance or service while the Pump housing remains in the pipework. The shaft seal is according to EN 12756. Pipework connection is via PN 10 DIN flanges (EN 1092-2 and ISO 7005-2). The Pump is equipped with a fan-cooled, permanent-magnet synchronous motor. The Pump is equipped with a fan-cooled asynchronous motor. The motor performance is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable management of the motor speed, which again enables adaptation of the output to a given requirement. The Pump is equipped with temperature- and differential pressure sensors.

• Suitable for Commercial heating, Commercial air conditioning, District heating, District cooling, Industrial heating, Industrial cooling, Desalination, Drinking water treatment, Water distribution, Irrigation, Community water supply
• This product's housing material is Cast Iron
• The impeller is manufactured from Composite
• Maximum operating pressure: 10 Bar.
• Temperature liquid range: -25 .. 120 °C.

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
