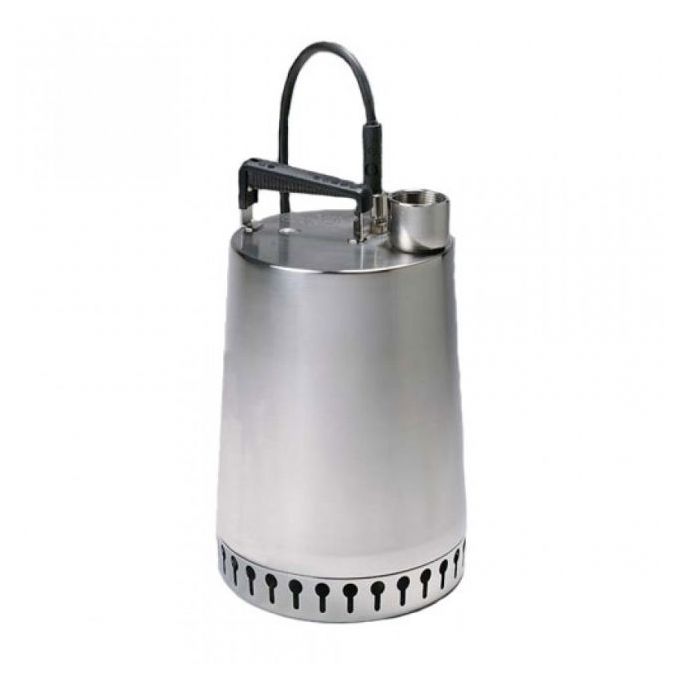

Grundfos - Unilift AP 12.40.04.1 Dirty Water Pump - without Floatswitch - 240V

Vertical single-stage Stainless Steel submersible pump with vertical discharge port and integrated submersible 1-phase totally enclosed motor in insulation class F with thermal overload protection. The pump is equipped with a suction strainer.

The impeller is a SEMI OPEN impeller for 12 mm free passage appropriate for pumping groundwater, surface water, rain water and similar.

The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.

The pump has a riser pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and long-life deep-groove greased-for-life ball bearings.

The pump is ready for use as it is fitted with carrying handle and is supplied with a 10 m mains cable. The mains cable is of the plug type with glass sealing compound in the socket to prevent penetration of humidity into the stator windings.

Suitable for: Domestic wastewater

Key Product Features

• Net weight: 11.4 kg
• Mains frequency: 50 Hz
• Approvals: CE,RCM,VDE,LGABG,EAC,TUVRHWID,MORO,UKCA,CNROHSEXP,SEPRO
• Max Head: 10 m
• Product Voltage: 1 x 230 V
• Temperature Liquid Range: 0 .. 55 °C
• Connection Size: 1 1/2 inch
• Type of connection: Rp
• Impeller Material: Stainless Steel
• Pump Housing Material: Stainless Steel

This is a Grundfos Submersible pump suitable for installation below liquid level.
