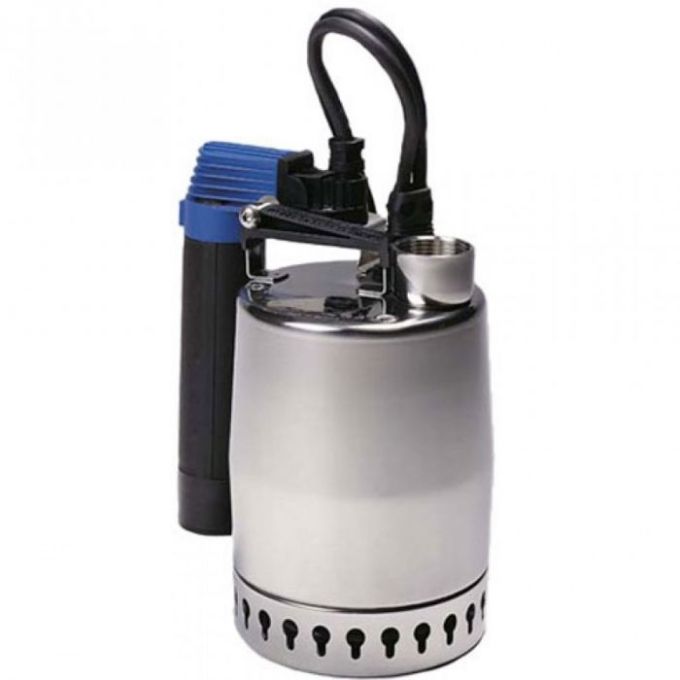

Grundfos - Unilift KP 250 AV1 Submersible Pump - With Tubular Float - 230V

Name: Grundfos - Unilift KP 250 AV1 Submersible Pump - With Tubular Float - 230V
Brand: Grundfos
SKU: 012H6400
Price: 518.16 GBP
Availability: InStock

Part Number:

012H6400

Fitted with a suction strainer, a carrying handle and is supplied with a 5 m mains cable. The impeller is a semi-open impeller for 10 mm free passage suitable for pumping groundwater, surface water, rain water and similar liquids.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£762.00 RRP £518.16 £431.80

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Fitted with a suction strainer, a carrying handle and is supplied with a 5 m mains cable.

The impeller is a semi-open impeller for 10 mm free passage suitable for pumping groundwater, surface water, rain water and similar liquids.

The pump has a double shaft seal consisting of two lip seals with grease in-between.

The pump has an outer casing ensuring continuous cooling of the motor by the pumped liquid.

The rotor shaft operates in two maintenance-free carbon bearings cooled by the pumped liquid The motor is filled with a non-toxic motor liquid.

This unit delivers a maximum head of 7m and runs at 230V.

Real-world product applications

Removing water from pits, sumps, and collection points
Supporting drainage and water transfer duties
Dewatering flooded areas and low-lying spaces
Transferring water from tanks and containers
Assisting with general submersible pumping tasks

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£431.80
Manufacturer	Grundfos
Warranty	1 year guarantee
Dimensions	214mm x 215mm x 236mm
Electrical supply	230V
AC Power	Single Phase
Cable length	5m
Flow Rate	180 Ltr/min
Max Head	7m
Pump Operation	Automatic (with float switch)
Water type	Dirty Water
Pump Type Filter	Submersible
Switch	Float Switch
Duty Type	Domestic
Submersible vs Surface Mounted	Submersible
Next Day Delivery	Yes
Connection Size	1 1/4 inch
Manufacturers Part Number	012H6400
