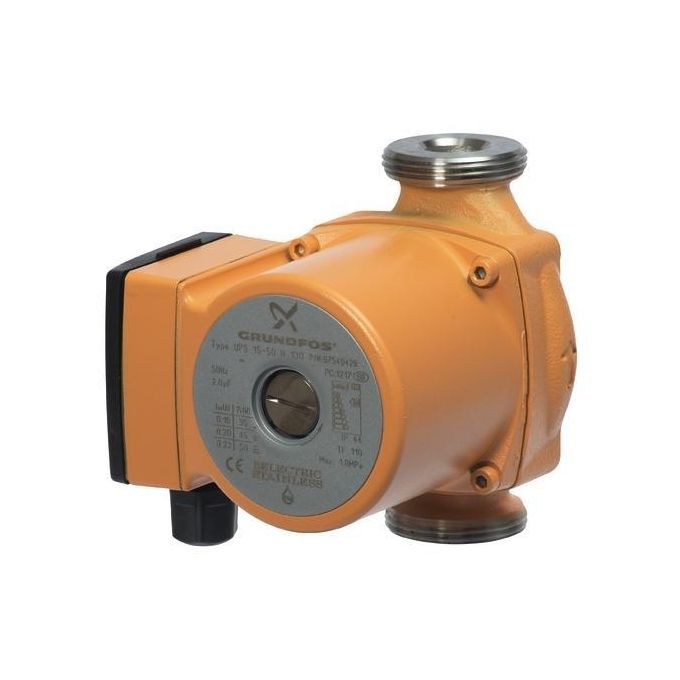

Grundfos - UPS 15-50N Domestic Hot Water Service Pump Circulator - 230V - Stainless Steel

Name: Grundfos - UPS 15-50N Domestic Hot Water Service Pump Circulator - 230V - Stainless Steel
Brand: Grundfos
SKU: GR-97549426
Price: 367.63 GBP
Availability: InStock

Part Number:

GR-97549426

UPS 15-50 N 130 The pump unit is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£576.00 RRP £367.63 £306.36

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

UPS 15-50 N 130
The pump unit is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump has 3-step speed selector. The pump is characterized by:

Stainless Steel pump housing
corrosion-protected impeller, Composite
Stainless Steel rotor can and bearing plate
Carbon axial bearing
Ceramic shaft and radial bearings

The motor is a 1-phase motor. No additional motor protection is required.

Suitable for: Commercial heating, Domestic heating, Domestic hot water recirculation

Real-world product applications

Circulating water around closed-loop pipework systems
Maintaining flow through distribution circuits
Supporting recirculation in building services installations
Keeping consistent flow through equipment or pipe runs
Assisting with loop circulation for system efficiency

Key Product Features

Net weight: 1.9 kg
Mains frequency: 50 Hz
Approvals: CE,WEEE,UKCA
Rated Head: 2.531 m
Max Head: 50 dm
Rated Flow: 1.77 m³/h
Product Voltage: 1 x 230 V
Temperature Liquid Range: 2 .. 110 °C
Pumped Liquid: Water
Port to Port Length: 130 mm
Connection Size: 1 1/2 inch
Type of connection: G
Maximum Operating Pressure: 10 bar
Impeller Material: Composite
Pump Housing Material: Stainless Steel

This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£306.36
Manufacturer	Grundfos
Warranty	1 year guarantee
Bars	10 bar
Impeller Type	Single
Electrical supply	230V
AC Power	Single Phase
Flow Rate	50 Ltr/min
Max Head	4m
Water type	Clean or Discoloured
Pump Type Filter	Circulator Pump
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	Yes
Port To Port	130mm
Connection Size	G 11/2
Connection Type	G
Manufacturers Part Number	97549426
