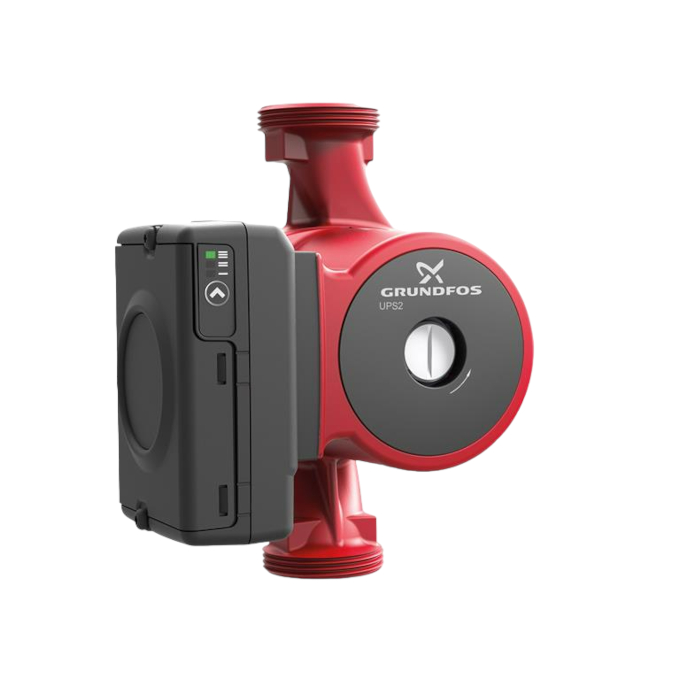

Grundfos - UPS2 25-80 Heating Circulator Pump - 240V - Cast Iron

High-efficiency circulator pump unit with permanent-magnet motor (ECM technology) fit for the ErP directive no. 641/2009 due to continuous variable-speed control for circulation of clean heating water according to VDI 2035.

Features and benefits: UPS2 25-80 180

High-efficiency circulator pump with permanent-magnet motor (ECM technology) complying with the ErP directive no. 641/2009 thanks to continuous variable-speed control. appropriate for circulation of clean heating water according to VDI 2035.

Features and benefits:

Suitable for: Commercial heating

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Net weight: 2.8 kg
• Mains frequency: 50 / 60 Hz
• Approvals: CE,WEEE,UKCA
• Rated Head: 6.84 m
• Max Head: 80 dm
• Rated Flow: 3.81 m³/h
• Product Voltage: 1 x 230 V
• Temperature Liquid Range: 2 .. 95 °C
• Pumped Liquid: Water
• Port to Port Length: 180 mm
• Connection Size: 1 1/2 inch
• Type of connection: G
• Maximum Operating Pressure: 10 bar
• Impeller Material: Composite
• Pump Housing Material: Cast Iron

This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
