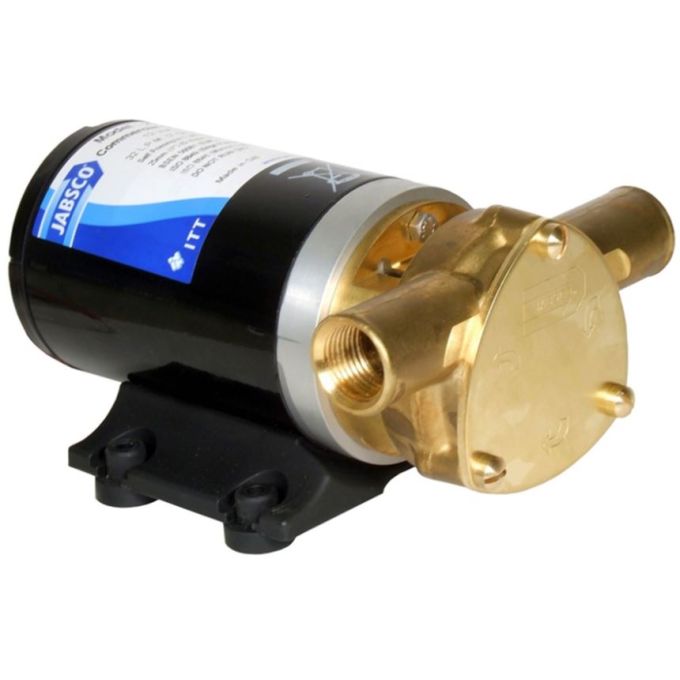

Jabsco - Water Puppy Self-Priming Pump - 12V - 32 Ltr/min

Name: Jabsco - Water Puppy Self-Priming Pump - 12V - 32 Ltr/min
Brand: Jabsco
SKU: 23680-4003
Price: 154.8 GBP
Availability: InStock

Part Number:

23680-4003

Voltage for this item is 12V. It has an actual flow rate of 32 Ltr/min. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£220.99 RRP £154.80 £129.00

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Jabsco Water Puppy Self-Priming Pump - 12v is a Self Priming item. Voltage for this item is 12V. It has an actual flow rate of 32 Ltr/min. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 0.4 bar.

Real-world product applications

Drawing water from shallow sources such as tanks and sumps
General water transfer where suction lift may be required
Supporting site drainage and utility pumping duties
Supplying water for irrigation and washdown systems
Feeding water to distribution pipework

Key Product Features

Connections: - for 25mm (1") bore hose or ½"
BSP Dimensions: - 195mm long, 120mm wide, 75mm high
Fuse Size: - 15 amp
Output: - up to 32 litres/minute (6.5 gallons/minute)
Medium duty, continuously rated bilge and deckwash pump
Self-priming up to 1.2m vertical lift
Simple, fully serviceable design with few wearing parts
Operating pressure: 0.4 Bar.
Flow rate: 32 Ltr/min
Water type: Clean or Discoloured
Voltage: 12V

Jabsco (est. 1938) manufactures pumps for marine and industrial fluid handling. Their ranges include diaphragm pumps, flexible impeller pumps and washdown/bilge solutions. Typical applications cover freshwater pressure, bilge pumping, fuel or liquid transfer and general marine service duties.

More Information
Price	£129.00
Manufacturer	Jabsco
Warranty	1 year guarantee
Dimensions	L95mm x W120mm x H75mm
Bars	0.4 bar
Electrical supply	12V
AC Power	Single Phase
Flow Rate	32 Ltr/min
Water type	Clean or Discoloured
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Self-Priming
Next Day Delivery	Yes
Connection Size	1 inch Bore Hose / ½"BSP male threaded fitting
Manufacturers Part Number	23680-4003
