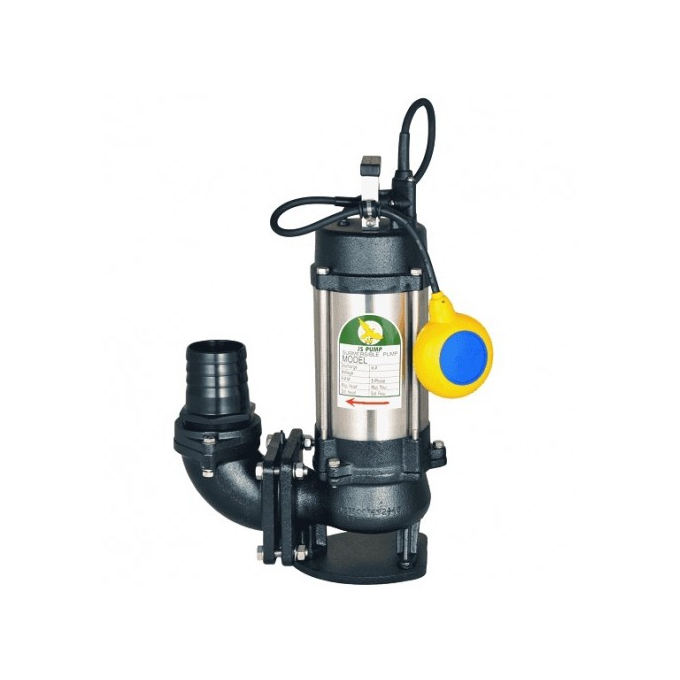

JS - 1500 SV Submersible Waste Water/Sewage Vortex Pump - 230V - 750 Ltr/min - 10m Head

Name: JS - 1500 SV Submersible Waste Water/Sewage Vortex Pump - 230V - 750 Ltr/min - 10m Head
Brand: JS
SKU: 011-768A
Price: 814.98 GBP
Availability: InStock

Part Number:

011-768A

1500 SV submersible sewage vortex pump. The JS Pump SV series effectively transfers suspended solids through the use of its vortex impeller and wide volute casing.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£958.80 RRP £814.98 £679.15

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

1500 SV submersible sewage vortex pump. The JS Pump SV series effectively transfers suspended solids through the use of its vortex impeller and wide volute casing. Vortex flow and a large passage allow minimum contact between pumped solids and impeller and offer less pump blockage. Double mechanical seals (0.25kw and above), Class F motor insulation, a shaft sleeve to save on shaft wear due to abrasives and corrosion, additional lip seal protection, thermal overload protection, an enhanced cable entry sealing system and the option of slide rail kits are included. This version is 230v.

Range Information

The JS SV range is designed for transferring suspended solids using a vortex impeller and wide volute casing. The vortex flow and large passage help minimise contact between solids and the impeller to reduce blockage. The range also includes double mechanical seals, Class F motor insulation and added lip-seal protection.

Key Product Features

INCLUDED: Our JS Pumps come with a hose tail attachment, designed to provide secure and reliable hose connection.
- Double mechanical seals (0.25KW and above).
- Class F motor insulation.
- Shaft sleeve saves on shaft wear due to abrasives and corrosion.
- Additional lip seal protection keeps impurities and abrasives away from the mechanical seals.
- Thermal overload protection guards against high amperage and high temperature.
- Enhanced cable entry sealing system.
- Slide rail kits available to make pumps installation and removal easier and safer.
- Voltage - 230v
- Power - 1.5kw
- Outlet size - 3"
- Max. flow Lpm - 750
- Max. head M - 10
- Solids handling - 65mm
- Weight - 44
- Power cable - 10M
- Automatic - MAC3 float switch
- Flow rate: 750 Ltr/min
- Water type: Sewage
JS Pumps are a brand of submersible pumps designed for a variety of applications, including drainage, dewatering, and sewage handling. The JS Pump brand is certified to ISO 9001 and offers a wide range of submersible pump models suited for industrial, agricultural, domestic, mining, aggregate, and steel industry applications.

More Information
Price	£679.15
Manufacturer	JS
Warranty	1 year guarantee
Impeller Type	Single
Electrical supply	230V
AC Power	Single Phase
Cable length	10m
Flow Rate	750 Ltr/min
Max Head	10m
Pump Operation	Automatic (with float switch)
Water type	Sewage
Pump Type Filter	Sewage Pump
Switch	Float Switch
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	Yes
Connection Size	3 inch
Manufacturers Part Number	011-768A
