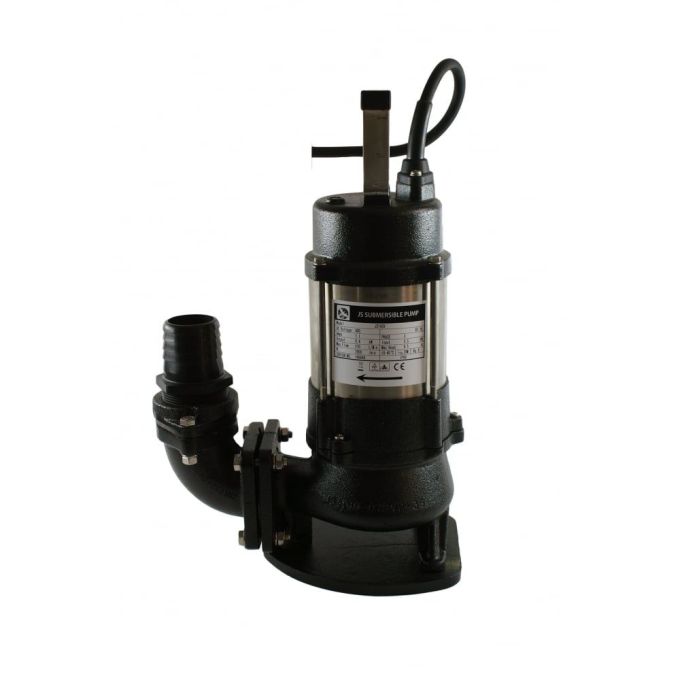

JST-22SV 3" Manual Submersible Sewage Pump - 415V - Three Phase - 900 Ltr/min - 8m Head

Name: JST-22SV 3" Manual Submersible Sewage Pump - 415V - Three Phase - 900 Ltr/min - 8m Head
Brand: JS
SKU: 011-026
Price: 1348.44 GBP
Availability: InStock

Part Number:

011-026

JST-22SV submersible sewage vortex pump. The JS Pump SV series effectively transfers suspended solids through the use of its vortex impeller and wide volute casing.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,586.40 RRP £1,348.44 £1,123.70

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

JST-22SV submersible sewage vortex pump. The JS Pump SV series effectively transfers suspended solids through the use of its vortex impeller and wide volute casing. Vortex flow and a large passage allow minimum contact between pumped solids and impeller and offer less pump blockage. Double mechanical seals (0.25kw and above), Class F motor insulation, a shaft sleeve to save on shaft wear due to abrasives and corrosion, additional lip seal protection, thermal overload protection, an enhanced cable entry sealing system and the option of slide rail kits are included. This version is manual no float switch, 415v and three-phase.

Range Information

The JST SV range is the three-phase version of the JS sewage vortex family and is intended for suspended-solids transfer using a vortex impeller and wide volute casing. The large passage helps reduce contact between solids and the impeller to minimise blockage. Supporting features include double mechanical seals, Class F motor insulation and enhanced seal protection.

Key Product Features

INCLUDED: Our JS Pumps come with a hose tail attachment, designed to provide secure and reliable hose connection.
Supplied with 10m of power cable
Max flow up to 900 Ltr/min
Max head up to 8m
Capable of handling soft solids up to 65mm in diameter
Water type: Dirty Water
Voltage: 415V

More Information
Price	£1,123.70
Manufacturer	JS
Warranty	1 year guarantee
Impeller Type	Vortex Impeller
Electrical supply	415V
AC Power	Three Phase
Cable length	10m
Flow Rate	900 Ltr/min
Max Head	8m
Pump Operation	Manual (without float switch)
Water type	Dirty Water
Pump Type Filter	Submersible
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Manufacturers Part Number	011-026
