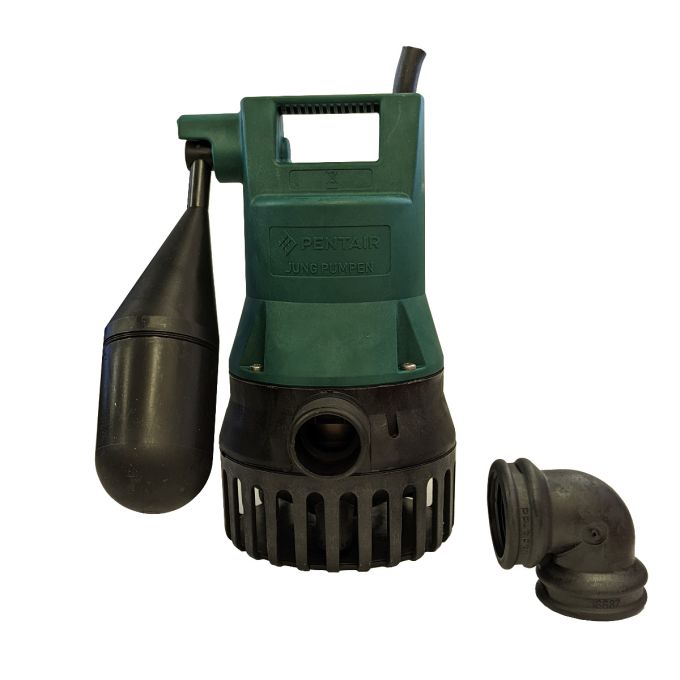

Jung Pumpen U3KS Spezial Submersible Drainage Pump - 230V - Single Phase - 7m Head

Name: Jung Pumpen U3KS Spezial Submersible Drainage Pump - 230V - Single Phase - 7m Head
Brand: Jung
SKU: JP09563
Price: 598.8 GBP
Availability: InStock

Part Number:

JP09563

Electrical Data The Jung Pumpen U3KS Spezial Submersible Drainage Pump - 230v - Single Phase is a Submersible product.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£598.80 £499.00

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Jung Pumpen U3KS Spezial Submersible Drainage Pump - 230V - Single Phase - 7m Head - JP09563

The U3KS Spezial from Jung Pumpen is a special model made from high-quality resistant materials. This model is designed and rated for both stationary and portable use and is also able to handle aggressive media such as brackish water, silage liquor, whey and liquid fertilizer in the agricultural industry.

Contaminated water at high temperatures from dishwashers and washing machines (also high temperature) as well as condensate from condensing boilers can also be removed with the pump. For stationary operation, the pump can also be combined with either the collecting tank supplied or with a large number of our chemical-resistant collecting tanks.

Incorporates

For saline solutions up to 10% salinity
Continuous operation
Low-level fluid conveyance
Flushing device
Safe to run dry
EIP technology
SiC mechanical seal
Moisture sealed cable inlet
35°C (Can handle short bursts up to 60°C)

Electrical Data

Voltage:1/N/PE~230
Motor rating: P1 - 0.32kW, P2 0.20kW
Current type: W-Current
Current: 1.4A
Motor overload protection: internal
RPM: 2720 min-1

Real-world product applications

Dewatering flooded areas such as basements and pits
Draining water from excavations, trenches, and site works
Removing water from sumps, chambers, and collection points
Supporting general drainage and clean-up tasks
Transferring water from tanks or containers

Key Product Features

For saline solutions up to 10% salinity
Continuous operation
Low-level pumping
Flushing device
Safe to run dry
EIP technology
SiC mechanical seal
Moisture sealed cable inlet
35°C (Can handle short bursts up to 60°C)
Water type: Moderate Aggressive Solutions
Voltage: 230V
Maximum head: 7m
Cable length: 4m

Voltage: 1/N/PE~230
Motor rating: P1 - 0.32kW, P2 0.20kW
Current type: W-Current
Current: 1.4A
Motor protection: internal
RPM: 2720 min-1

More Information
Price	£499.00
Manufacturer	Jung
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Cable length	4m
Max Head	7m
Water type	Moderate Aggressive Solutions
Pump Type Filter	Submersible
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Connection Type	Threaded
Manufacturers Part Number	JP50005
