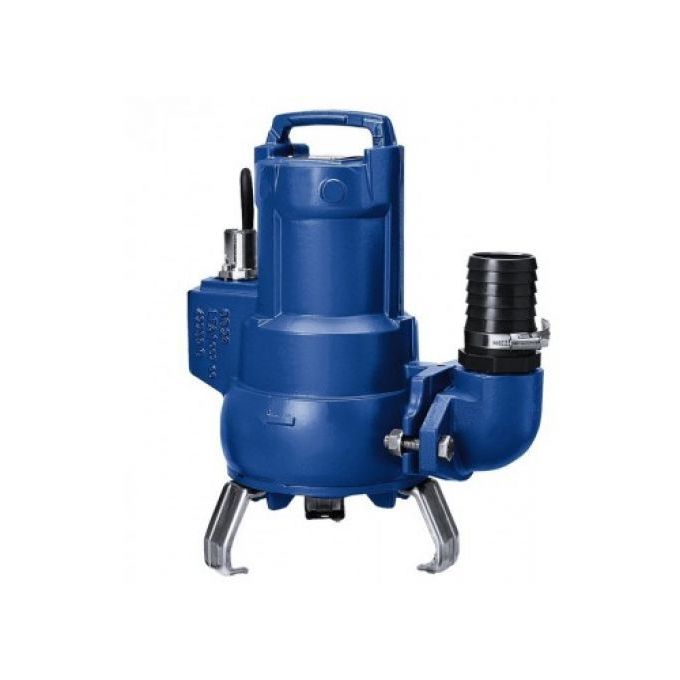

KSB - AMA Porter 503 ND Submersible Drainage Pump - 3 Phase - No Float Switch - 415V - 16m Head

Performance:

Electrical Specifications:

Applications:

Additional Features:

The KSB AMA Porter 503 ND Submersible Drainage Pump - 3 Phase - No Float Switch is a Submersible product. Voltage for this item is 415V. It is supplied with a 10m cable. The maximum head for this pump is 16m.

Real-world product applications

• Dewatering flooded areas such as basements and pits
• Draining water from excavations, trenches, and site works
• Removing water from sumps, chambers, and collection points
• Supporting general drainage and clean-up tasks
• Transferring water from tanks or containers

Key Product Features

• It's a floodable, vertical, single-stage submersible pump made of Cast Iron
• Features a 2" flanged female discharge port
• Dimensions: 39,3cm high x 32,8cm deep x 19,8cm wide
• Weight: 22 kg
• Water type: Dirty Water
• Voltage: 415V
• Maximum head: 16m
• Cable length: 10m

• Maximum flow rate: 29 m³/hr
• Maximum head: 16 meters
• Motor size: 1.5 kW

• Voltage: 400V/415V 3-phase, 50Hz
• Full load current: 3.5A
• Comes with a 10-meter cable

• Appropriate for pumping wastewater from toilets, washing machines, and dishwashers in intermittent operation
• Can be applied for surface water or rainwater pumping from car parks and uneven surfaces
• Ideal for drainage of sumps and cellars liable to flooding

• Does not come with a float switch, allowing for manual control
• An optional installation kit is available, which includes feet, discharge elbow, hose connector, and fittings

KSB (est. 1871) is a German manufacturer of pumps and valves for water, wastewater and industry. Product ranges include centrifugal process pumps, booster systems and submersible sewage pumps. Typical applications include public water treatment, building services, industrial processing and power-generation-related water duties.
