Lowara - 22SV05T055T/D Multistage Vertical Pump - 400V - Three Phase - 259m Head

Name: Lowara - 22SV05T055T/D Multistage Vertical Pump - 400V - Three Phase - 259m Head
Brand: Lowara
SKU: 1016LD650
Price: 4025.28 GBP
Availability: InStock

Part Number:

1016LD650

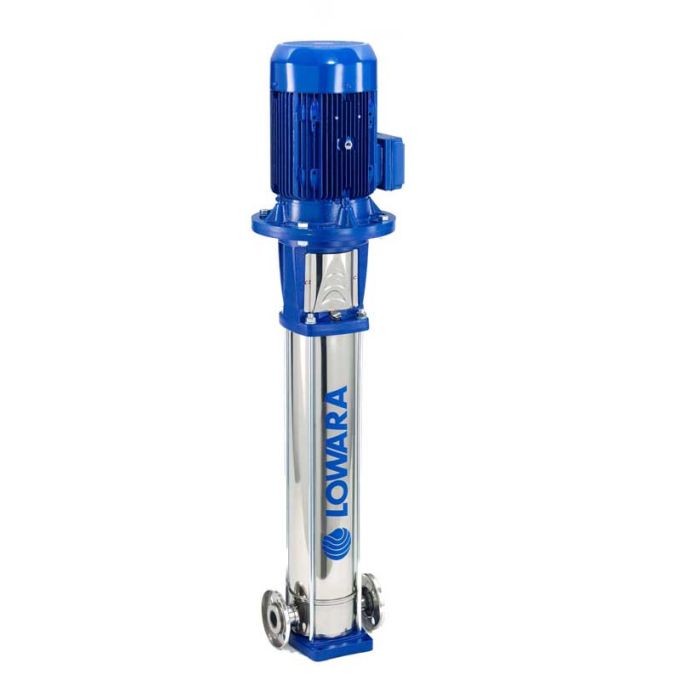

The Lowara 22SV05T055T/D is a three phase vertical multistage pump with a 2 pole, 5.5KW motor and AISI 304 Oval flanges.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£5,750.40 RRP £4,025.28 £3,354.40

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Lowara 22SV05T055T/D is a three phase vertical multistage pump with a 2 pole, 5.5KW motor and AISI 304 Oval flanges. The Lowara e-SV are a widely applied WRAS approved vertical multistage pump family with a vast number of versions and potential applications. They are available in 11 basic flow sizes, with the option to add multiple stages to increase the discharge pressure as required. High efficiency motors are also available with 1.5KW and above rated to IE3 specifications. The e-SV range are widely used in pressure boosting potable water and a range of industrial applications.

The Lowara 22SV05T055T/D Multistage Vertical Pump - 400v - Three Phase is a Multistage pump. Voltage for this item is 400V. The maximum head for this pump is 259m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 40 bar.

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

Operating pressure: 40 Bar.
Water type: Clean or Discoloured
Voltage: 400V
Maximum head: 259m

Lowara (est. 1968) is an Italian pump brand, now part of Xylem, specialising in stainless steel centrifugal and multistage pumps, plus boosters and borehole solutions. Typical applications include pressure boosting, HVAC circulation, irrigation, clean-water transfer and light industrial duties where corrosion resistance and reliable hydraulic performance are required.

More Information
Price	£3,354.40
Manufacturer	Lowara
Warranty	1 year guarantee
Bars	40 bar
Electrical supply	400V
AC Power	Three Phase
Max Head	259m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Port To Port	200mm
Connection Size	DN50 Oval flanged
Manufacturers Part Number	1016LD650
