Lowara - Ecocirc XLplus D 40-100 F Twin Head Circulator Pump - 230V - Single Phase - 220mm

Electrical Data

Materials

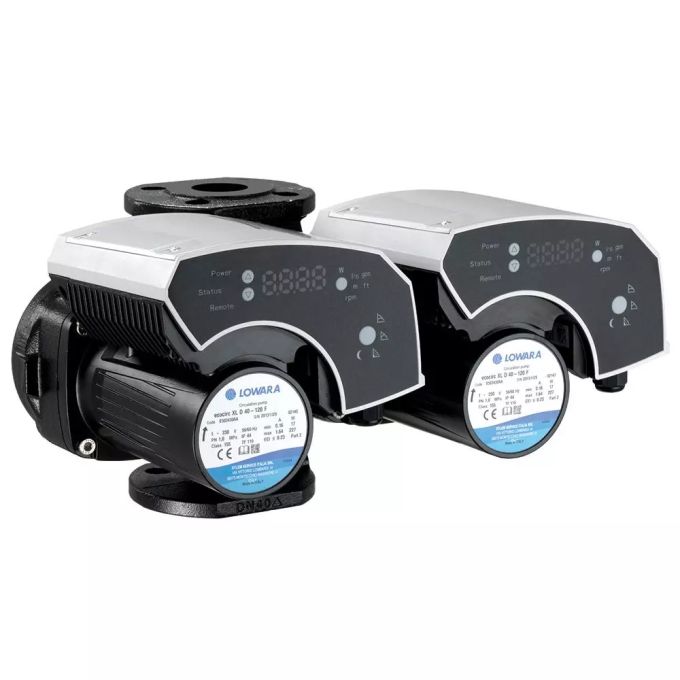

The Lowara Ecocirc XLplus D 40-100 F Twin Head Circulator Pump - 230v - Single Phase - 220mm is a Circulator Pump item. Voltage for this item is 230V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Port to Port: 220mm
• Elec. Connection: Terminals
• Specific EEI: <=0,23
• Nominal Pressure: PN6/10
• Connection: DN40 / Flanged
• Water type: Clean or Discoloured
• Voltage: 230V

• Rated Voltage: 230 V
• Frequency: 50Hz
• Protection class: IP44
• Insulation class: F
• Digital input Contact load: 5V, 10 mA
• Digital output Vmax < 250 VAC / Imax < 2 A
• Analog Input: 0-10 V / 4-20 mA
• Leakage Current: < 3.5 mA
• Communication: Modbus RTU & BACnet MS/TP
• Sound Pressure Level: <= 48dB(A)
• Rated Current: 1.4A

• Bush Bearing: Carbon, resin impregnated
• Thrust bearing Aluminum oxide
• Bearing plate: Stainless Steel
• Motor Housing: Aluminium
• O-Rings: EDPM
• Pump Housing: Cast Iron
• Impeller: PPS
• Wear ring: Stainless Steel
• Neck Ring: Stainless Steel
• Rotor Can: Stainless Steel
• Shaft: Stainless Steel
• Control box: Polycarbonate

Lowara (est. 1968) is an Italian pump brand, now part of Xylem, specialising in Stainless Steel centrifugal and multistage pumps, plus boosters and borehole solutions. Typical applications include pressure boosting, HVAC circulation, irrigation, clean-water transfer and light industrial duties where corrosion resistance and reliable hydraulic performance are required.
