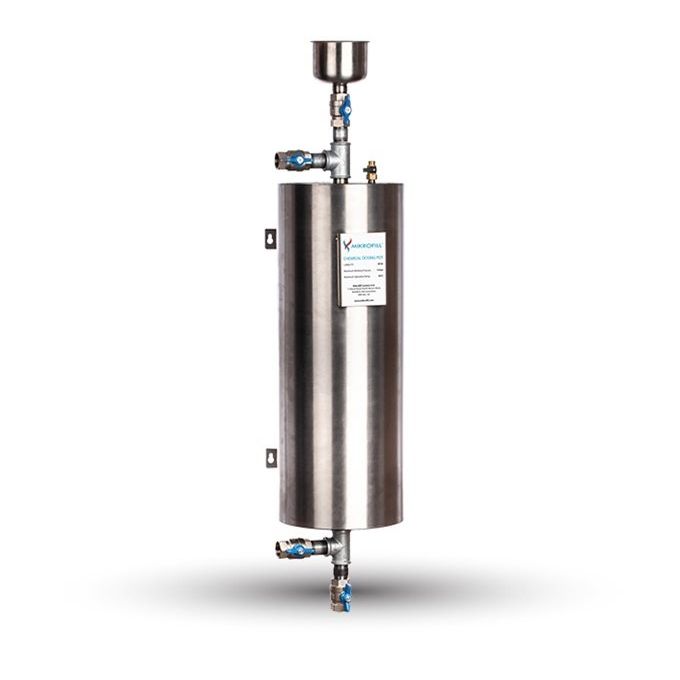

Mikrofill - 3.5 Ltr Dosing Pot - Wall Mounted

The Mikrofill - 3.5 Ltr Dosing Pot - Wall Mounted is a component designed to support the intended pump or pipework installation.

It is built to help maintain dependable system performance while giving installers and end users a practical, dependable solution for the application.

The Mikrofill Dosing Pot - 3.5 Litres - 10 Bar. is a wall-mounted chemical dosing vessel for adding corrosion inhibitors or anti-freeze into closed LPHW and CHW systems. Simple to operate and easy to flush clean, all system connections can be isolated via integrated ball valves.

Fabricated from AISI 304 Stainless Steel with welded construction and a tundish, each unit is compliant with PED 2014/68/EU. Sizes span 3.550 Ltrs with robust BSP connections, a maximum working pressure of 10 Bar and a maximum operating temperature of 90 C.

• Wall-mounted stainless construction for durability and hygiene
• Isolatable connections for safe, controlled dosing
• Fast flush and clean to minimise downtime
• PED 2014/68/EU compliant for assured quality

Standard BSP connections and supplied valves/fittings simplify installation across commercial heating and chilled water systems.

Key Product Features

• Sizes: 3.550 Ltrs
• Ball valve:3/8" BSP
• Pipe connections: all main connections 1" BSP
• Vessel: AISI 304 Stainless Steel, welded with tundish
• Pressure rating: max 10 Bar
• Temperature rating: max 90 C
• Included fittings: 4 × 1" BSP isolating valves, 2 × 1" BSP tee pieces, 4 × 1" BSP pipe nipples
• Aux connection:3/8" BSP for air relief valve or isolating valve
• Compliance: meets PED 2014/68/EU
• Water type: Clean or Discoloured
