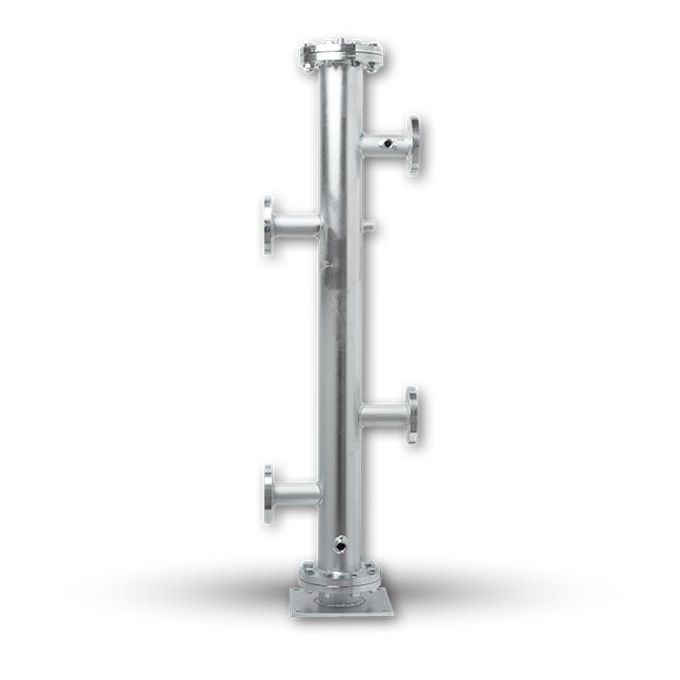

Mikrofill - MIkrovent 1000 Low Loss Header - Air & Dirt - Automatic Vent - OBSOLETE

Name: Mikrofill - MIkrovent 1000 Low Loss Header - Air & Dirt - Automatic Vent - OBSOLETE
Brand: Mikrofill
SKU: 400017
Price: 3704.4 GBP
Availability: OutOfStock

Part Number:

400017

The Mikrovent 1000 is a combined low loss header and air & dirt separator for connected loads up to 1000 kW , enhancing performance in commercial heating and chilled water systems.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

Now Obsolete - See Replacement Below

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Mikrovent 1000 is a combined low loss header and air & dirt separator for connected loads up to 1000 kW, enhancing performance in commercial heating and chilled water systems.

As water passes the spiral-wound Stainless Steel brushes, a local low-pressure zone forms behind each filament, releasing dissolved gases. The lower brush encourages deaeration of dissolved gases, while the upper brush helps release entrained gases within the header. Separated air rises to the top and is discharged via the automatic air vent.

Low loss header + air/dirt separation in a single unit
Two removable Stainless Steel brushes for efficient degassing
Automatic air vent provides continuous air removal
Improves system efficiency by reducing air and particulate contamination

Mikrovent headers are available for connected loads of 150, 250, 400, 750 and 1000 kW, making them a smart addition to new or refurbished LPHW or CHW systems.

Key Product Features

Capacity: suitable for connected loads up to 1000 kW
Dual removable Stainless Steel brushes: lower brush targets dissolved gases; upper brush releases entrained gases
Automatic air vent: purges separated air from the top of the unit
Air & dirt removal: helps protect components and improve seasonal efficiency
Low-pressure zone action: spiral filaments promote gas release for effective deaeration
Range options: 150 / 250 / 400 / 750 / 1000 KW models

More Information
Price	£3,087.00
Manufacturer	Mikrofill
Warranty	1 year guarantee
Pump Type Filter	Low Loss Header
Duty Type	Commercial
Next Day Delivery	No
Manufacturers Part Number	400017
