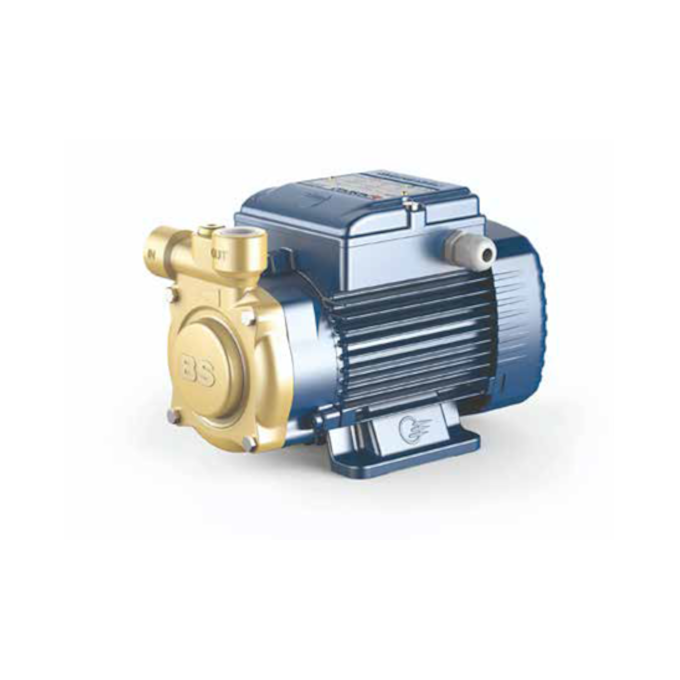

Pedrollo - PQM 81BS Peripheral Pump - Single Phase - 10 Bar. - 96m Head

The Pedrollo PQM 81BS Peripheral Pump is designed for use with clean water that does not contain abrasive particles, along with liquids that are not chemically aggressive to the pump's construction materials. Combining compact dimensions with dependable hydraulic performance, this surface pump is well suited to both domestic and industrial duties where efficient water transfer is required.

The PQ range is a practical choice for applications requiring reliable clean water handling in household and industrial environments. Its peripheral pump design supports efficient operation where compact installation space and consistent performance are important.

For correct installation and long-term reliability, the pump should be fitted in well-ventilated enclosed areas or in locations protected from adverse weather conditions.

Key Product Features

• Pedrollo PQ peripheral pump for clean water applications
• Suitable for liquids that are not chemically aggressive to pump materials
• Designed for clean water free from abrasive particles
• Suitable for both domestic and industrial applications
• Compact design with dependable hydraulic performance
• For installation in well-ventilated enclosed or weather-protected environments
• Manufactured in line with EN 60335-1, IEC 60335-1, EN 60034-1 and IEC 60034-1
• Pump Type: Peripheral surface pump
• Liquid temperature range: -10 °C to 90 °C
• Maximum suction lift: 7 m
• Maximum ambient temperature: 40 °C
• Maximum working pressure: 6 Bar
• Connection type: Gas threaded
• Suction connection: 1''
• Delivery connection: 1''
• Flow rate: 5 - 50 l/min
• Head range: 50 - 8 m
• Maximum head: 55 m
• Voltage: 220-230 V
• Phases: 1
• Frequency: 50 Hz
• Speed: 2900 rpm
• Rated power output: 0.55 kW
• Input power P1: 0.80 kW
• Rated current: 3.7 A
• Capacitor: 14 µF
• Capacitor voltage: 450 V
• Insulation class: F
• Protection rating: IPX4

Pedrollo (est. 1974) is an Italian manufacturer offering surface and submersible pumps including centrifugal, self-priming, multistage, borehole and drainage ranges. Pedrollo pumps are widely used for domestic water supply, garden and agricultural irrigation, pressure boosting, clean-water transfer and light commercial installations.
