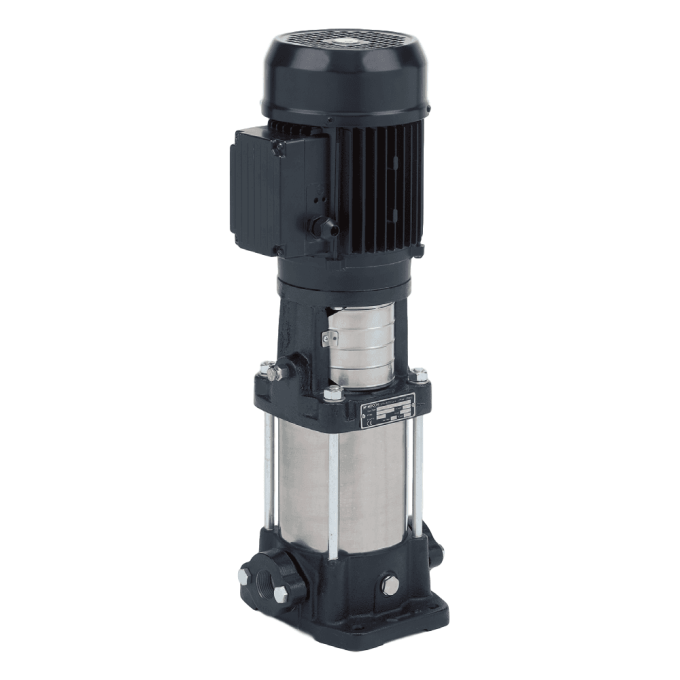

Pentair - PVM 5-20 AT Vertical Multistage Pump - 400V - Three Phase - 20 Stage

Name: Pentair - PVM 5-20 AT Vertical Multistage Pump - 400V - Three Phase - 20 Stage
Brand: Pentair
SKU: 2000-1156
Price: 2198.4 GBP
Availability: InStock

Part Number:

2000-1156

The PVM 5's are vertical multistage centrifugal pumps with "in line³ suction and delivery points directly connected to an electric motor.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,748.00 RRP £2,198.40 £1,832.00

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The PVM 5's are vertical multistage centrifugal pumps with "in line³ suction and delivery points directly connected to an electric motor. They are not self-priming. Design Includes include: Impellers, diffusers and outer pump chamber in AISI 304 Stainless Steel, shaft in AISI 316L Stainless Steel. Base and head casting are Cast Iron. Tungsten carbide mechanical seal. EPDM O rings. All 'A' versions are complete with 1¼³ oval counter flanges. All 'F' versions are DN25/32 round flanges, counter flanges are available upon request.

Features Tungsten Carbide Seal, Stainless Impellers & Diffusers

Application examples Boosting and Water Supply

The Pentair PVM 5-20 AT Vertical Multistage Pump - 400v - Three Phase - 20 Stage is a Multistage pump. Voltage for this item is 400V.

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

Water type: Clean Water
Voltage: 400V

Pentair (est. 1966) is a global water solutions company supplying pumps and system components for water movement and treatment. Their ranges cover boosters, well and pool pumps, drainage products and filtration-led solutions. Typical applications include domestic water supply, swimming pool circulation, irrigation, pressure systems and commercial water treatment.

More Information
Price	£1,832.00
Manufacturer	Pentair
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	20
Electrical supply	400V
AC Power	Three Phase
Water type	Clean Water
Pump Type Filter	Multistage
Duty Type	Commercial
Next Day Delivery	No
Manufacturers Part Number	2000-1156

Data Sheet(s)
