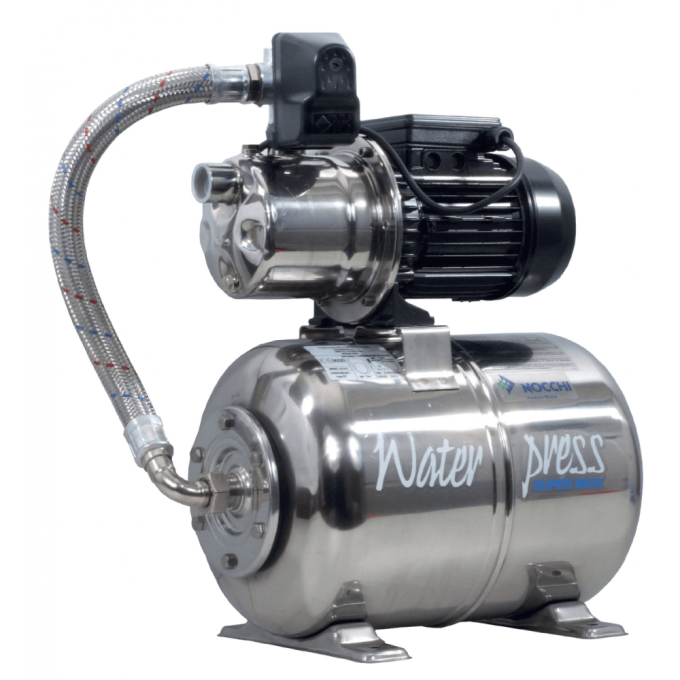

Pentair - SuperINOX - Waterpress 90/50 230V Domestic Cold Water Booster Set - 230V - Single Phase - 55 Ltr/min - OBSOLETE

The Pentair Superinox Waterpress 90/50 230V Domestic Cold Water Booster Set - 230v - Single Phase - 55 Ltr/min. is a Booster Set item. Voltage for this item is 230V. It has an actual flow rate of 55 Ltr/min. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Self priming single pump booster complete with pressure switch and mild steel accumulator vessel.

Water supply is not always enough to supply the correct amount of water at a suitable pressure, so the best and most affordable solution to solve water deficiency problems is to install a pumped booster system via a break tank.

These systems are specifically developed to boost the pressure of the water supply and deliver the correct amount of water to all outlets.

The pre-set pressure switch enables it to automatically start and stop the pump.

The water inside the reservoir prevents the pump from restarting if a small amount of water is requested, protecting it from excessive wear and enabling users to save power.

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Superinox 60/50
• Automatic Pressure Set
• 25 Litre Pressure Vessel - Stainless Steel
• Centrifugal Impeller
• 230v 50Hz
• 0.8Kw
• 55 Litres Per Minute Maximum
• 45 Metres Head Maximum
• 7 Metres suction Head Maximum
• 1" BSP Female Inlet & 1" BSP Female Outlet
• H 550mm x W 280mm x L 530mm
• 11Kg
• For cold pressure boosting
• Switches on and off automatically when an outlet is opened closed
• Flow rate: 55 Ltr/min
• Water type: Clean Water

Pentair (est. 1966) is a global water solutions company supplying pumps and system components for water movement and treatment. Their ranges cover boosters, well and pool pumps, drainage products and filtration-led solutions. Typical applications include domestic water supply, swimming pool circulation, irrigation, pressure systems and commercial water treatment.
