Smedegard Omega - 2-80-4ZS (25-4) In-Line Glanded Circulator Pump - 230V - Single Phase - 180mm

Smedegard Omega - 2-80-4ZS (25-4) In-Line Glanded Circulator Pump - 230V - Single Phase - 180mm - 302 8798 960

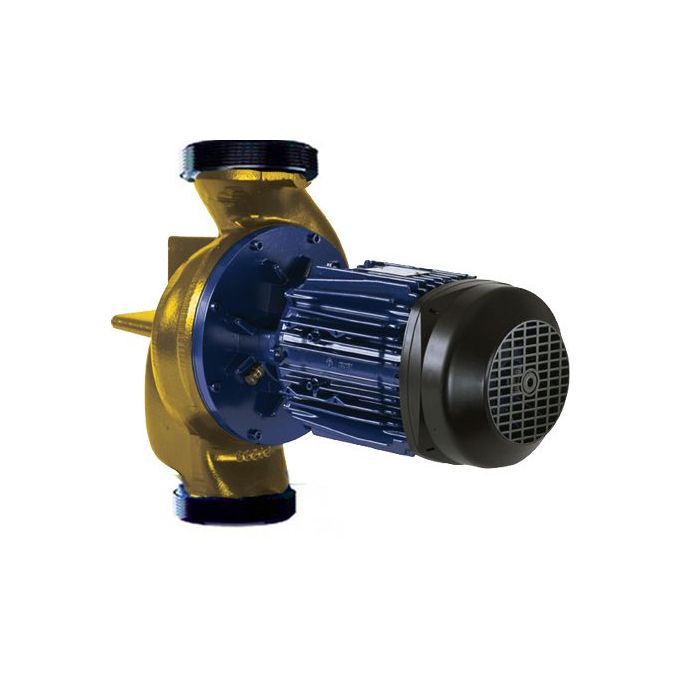

The Omega 2-80-4ZS (25-4) Bronze Circulator Pump from Smedegaard is an in-line glanded circulator pump with the motors mounted onto the pump volute body directly. The grade 304 stainless steel AISI 316 short shaft extension of the Omega 2-80-4ZS (25-4) makes the unit very compact ensuring stable running and long reliable service.

Bronze models are recommended in H.W.S. secondary installations. The standard bronze models are fitted with a special high quality hard faced mechanical seal, to meet the adverse conditions found in some HWS secondary systems. designed and rated for clean, non viscous, non aggressive and non explosive fluids without any solids or fibres.

Applications

• Commercial and industrial heating systems
• District heating schemes
• Water treatment plants
• Potable water
• HWS secondary systems

Incorporates

• Casings/impellers/motors designed for high efficiency
• Advanced design reduces noise levels
• Non overloading capacity curves
• Impellers statically and hydraulically balanced
• High quality grade 304 stainless steel shaft, AISI 316
• Temperature range -25°C to +120°C (specials +140°C)

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Commercial and industrial heating systems
• District heating schemes
• Water treatment plants
• Potable water
• HWS secondary systems
• Water type: Clean or Discoloured
• Voltage: 230V

• Casings/impellers/motors engineered for high efficiency
• Advanced design reduces noise levels
• Non overloading capacity curves
• Impellers statically and hydraulically balanced
• High quality Stainless Steel shaft, AISI 316
• Temperature range -25°C to +120°C (specials +140°C)
