Stuart Turner - AQUABOOST iBolt ABB IB 0506 2H-CMT/24 Twin Pump Booster Set - 230V - Single Phase - 266 Ltr/min - Obsolete

The AQUABOOST iBOLT range is designed to provide a high-performance and dependable solution for boosted cold water pressure where flow demand varies. Available as a stand-alone single pump or as single, twin, and triple pump booster sets, the range offers flexibility across a wide variety of installation requirements while maintaining consistent water pressure performance.

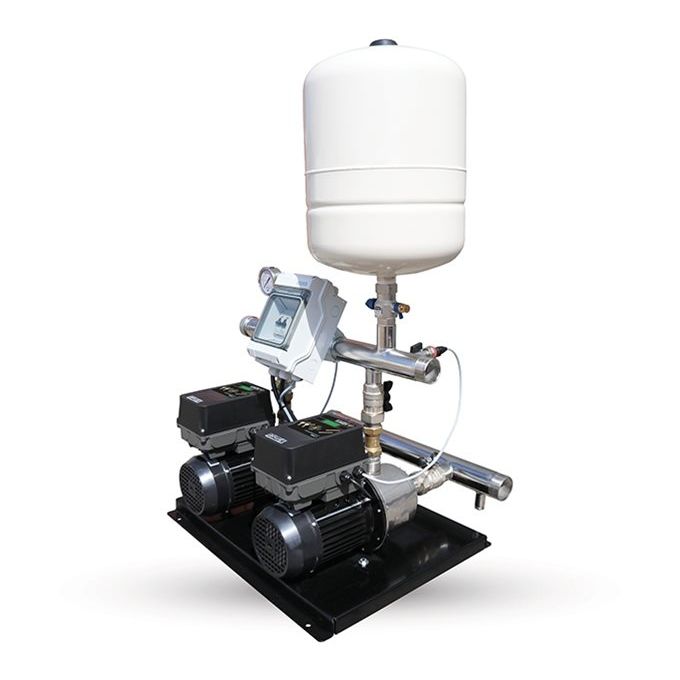

The AQUABOOST iBOLT twin pump booster set features two horizontal multistage pumps controlled by air-cooled variable speed frequency inverters mounted directly on the pump motors. Designed to be both high performing and intuitive to commission, these systems are engineered to deliver a constant water pressure supply while adapting to changing demand across the installation.

The iBOLT 03 twin pump range is capable of delivering flow rates up to 5.0 m³/hour per pump and head pressures of up to 9.0 Bar. The iBOLT 05 twin pump range is capable of delivering flow rates up to 8.0 m³/hour per pump and head pressures of up to 9.2 Bar. The iBOLT 09 twin pump range is capable of delivering flow rates up to 15.0 m³/hour per pump and head pressures of up to 9.2 Bar. The iBOLT 15 twin pump booster set is capable of delivering flow rates up to 25.0 m³/hour per pump and head pressures of up to 4.4 Bar.

Built to support reliable boosted water performance, the AQUABOOST iBOLT twin pump range combines advanced variable speed control with dry run protection and a WRAS approved 24 Ltr pressure vessel, helping to maintain system pressure while supporting dependable and efficient operation.

Key Product Features

• Flow rates up to 50 m³/hour
• Advanced variable speed control
• Dry run protection
• WRAS approved 24 Ltr pressure vessel
• Flow rates up to 16.0 m³/h
• Head pressure up to 7.0 bar.
• Dry run protection
• 304 Stainless Steel WRAS Approved pumps
• 304/316 Stainless Steel manifold assembly
• Nickel plated WRAS approved ball valves
• Union fittings on suction and discharge
• WRAS approved 24 Ltr pressure vessel
• Air cooled inverters
• Glycerine filled pressure gauge
• Powder coated base plate
• BMS Volt Free contacts

Stuart Turner (est. 1906) is a UK manufacturer of water boosting and pressurisation systems. Their ranges include shower pumps, whole-house boosting sets and mains-pressure solutions. Typical applications are improving water pressure and flow in homes and light commercial buildings.
