The Stuart Turner - Stainless Steel Dosing Pot - 50 Ltr - 10 Bar. is a component designed to support the intended pump or pipework installation.

With pressure duties up to 10 Bar and a stainless steel construction, it is built to help maintain dependable system performance.

The Stuart Turner range of dosing pots are engineered to insert liquid chemicals, usually corrosion inhibitor or anti-freeze solutions, into closed heating or chilled water systems.

For concentration levels of themes chemicals please always consult the specific manufacturer's recommendations.

Stuart Turner Dosing Pots are suppoed as a kit of components which will need to be assembled as per the Configuration section of the Technical Documentation.

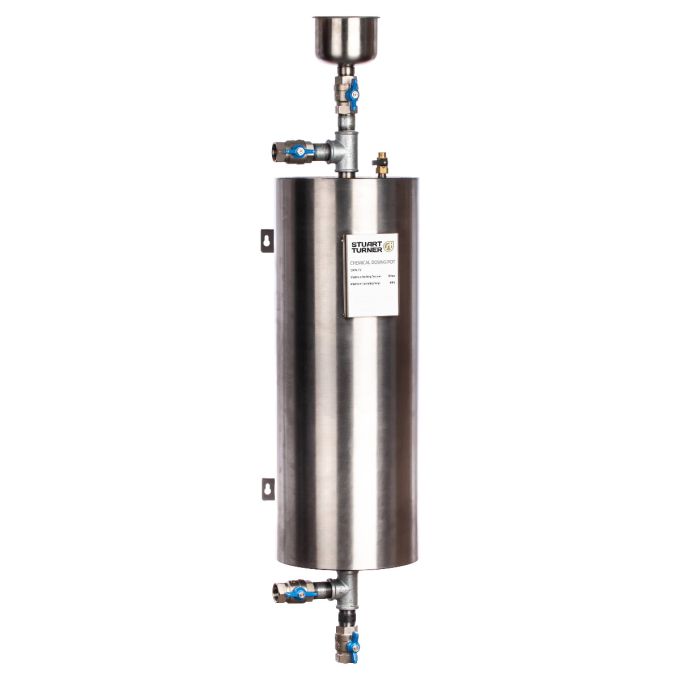

The dosing pot kit consists of:

• Fabricated vessel with welded construction
• 2 x wall brackets (integral with vessel)
• Manual air vent valve
• Tundish
• 4 x isolation valves
• 4 x pipe nipples
• 2 x tee piece

Features & Benefits:

• AISI 304 Stainless Steel fabricated vessel with welded construction and tundish
• 10 bar. maximum working pressure
• 90 degree C maximum operating temperature
• 2 x wall brackets integral vessel
• All pipe connections are 1" BSP
• Simple and safe to operate and flush clean
• All connections to the system can be isolated by the ball valves
• All dosingpots comply with the pressure equipment directive (PED) 2014/68/EU

Key Product Features

• Operating pressure: 10 Bar.
