Stuart Turner - VM 0110 230-400 T 50 Vertical Multistage Pump - 400V - Three Phase - 10 Stage - OBSOLETE

Name: Stuart Turner - VM 0110 230-400 T 50 Vertical Multistage Pump - 400V - Three Phase - 10 Stage - OBSOLETE
Brand: Stuart Turner
SKU: 46980
Price: 1063.6 GBP
Availability: OutOfStock

Part Number:

46980

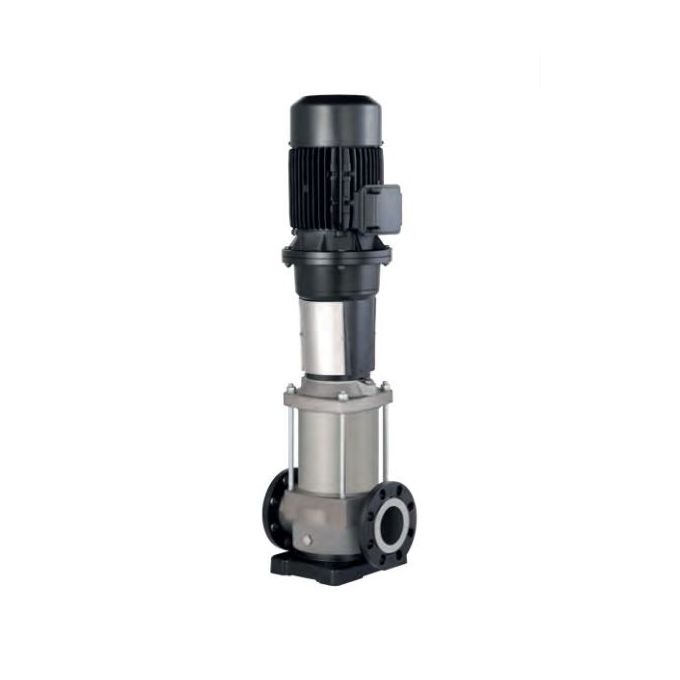

Stuart Turner - VM 0110 230-400 T 50 Vertical Multistage Pump - Vertical multi-stage pumps featuring a compact, robust design and heavy-duty oversized motor bearing.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,063.60 £886.33

Out of stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stuart Turner - VM 0110 230-400 T 50 Vertical Multistage Pump -

Vertical multi-stage pumps featuring a compact, robust design and heavy-duty oversized motor bearing.

Pump head construction: AISI 304 Stainless Steel, these robust and durable pumps are available in single phase and three phase options.

This pump is suitable for use in a wide range of water boosting applications.

Domestic and commercial water supply
Industrial systems, plant and processing
Wash down pumps
Water distribution
Irrigation and rainwater recovery
Temperature control and air conditioning systems

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

Operating pressure: 26 Bar.
Flow rate: 46 Ltr/min
Water type: Clean or Discoloured
Voltage: 400V
Maximum head: 68m

Stuart Turner (est. 1906) is a UK manufacturer of water boosting and pressurisation systems. Their ranges include shower pumps, whole-house boosting sets and mains-pressure solutions. Typical applications are improving water pressure and flow in homes and light commercial buildings.

More Information
Price	£886.33
Manufacturer	Stuart Turner
Warranty	1 year guarantee
Dimensions	Height: 709mm \| Width: 259mm \| Depth: 210mm
Bars	26 bar
Impeller Type	Vertical multistage
Impeller Stages	10
Electrical supply	400V
AC Power	Three Phase
Flow Rate	46 Ltr/min
Max Head	68m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Approvals	CE
Inlet Connection	DN25
Outlet Connection	DN25
Next Day Delivery	No
Manufacturers Part Number	46980
