Trebles - BoostBox Cat 5 Booster Set - 18L Tank - Single Pump - 10 Bar. - 44m Head

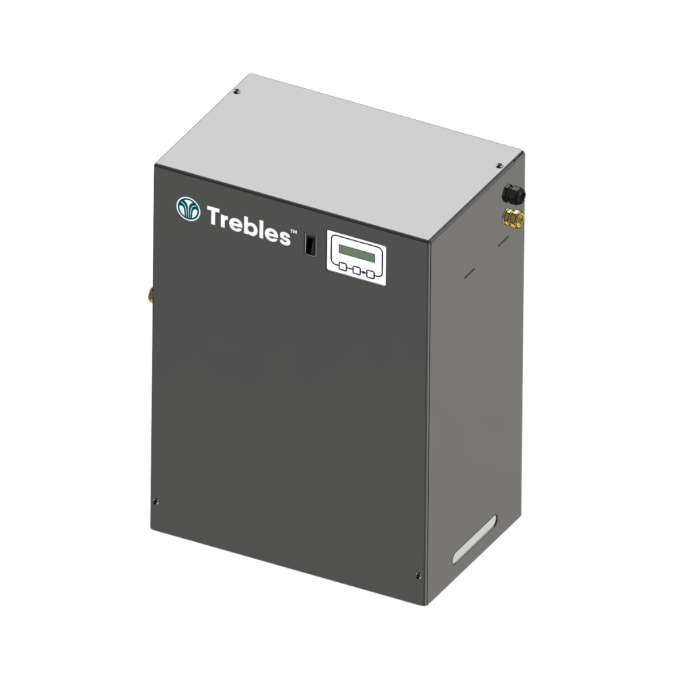

A space-efficient packaged solution for compliant cold water pressure boosting, the Trebles BoostBox 5236-130 is a Category 5 single pump booster set offering reliable hydraulic performance in installations where space and compliance are both critical considerations. Delivered as a fully enclosed unit suitable for wall or floor mounting, it integrates a fixed speed pump, 18 Litre AB Air Gap break tank, digital controller, and solenoid fill arrangement into one assembly.

Achieving up to 44m Pmax with a maximum operating pressure of 35m and a maximum flow rate of 33 L/min, this model is well suited to smaller boosted cold water installations. Solenoid fill is provided as standard to sustain performance under continuous demand, with dry run protection, BMS-ready volt-free contacts, error logging, password protection, and a mains isolator switch included as standard equipment.

• Category 5 cold water booster set in a compact packaged format
• Single pump, fixed speed configuration
• Integrated 18 Litre AB Air Gap break tank
• Wall or floor mountable aluminium enclosure
• Pmax 44m / maximum operating pressure 35m
• Maximum flow rate: 33 L/min
• Solenoid fill, digital controller, and BMS volt-free contacts as standard

Key Product Features

• Category 5 cold water booster set
• Single pump fixed speed configuration
• 18 Litre AB Air Gap break tank
• Wall or floor mounted installation
• Pmax: 44m
• Maximum operating pressure: 35m
• Maximum flow: 33 L/min
• Solenoid fill as standard
• Digital controller included
• Dry run protection
• Error logging and password protection
• BMS connectivity via volt-free contacts
• 230/1/50 supply
• 15mm compression inlet and outlet
• 2 Year manufacturer's guarantee
