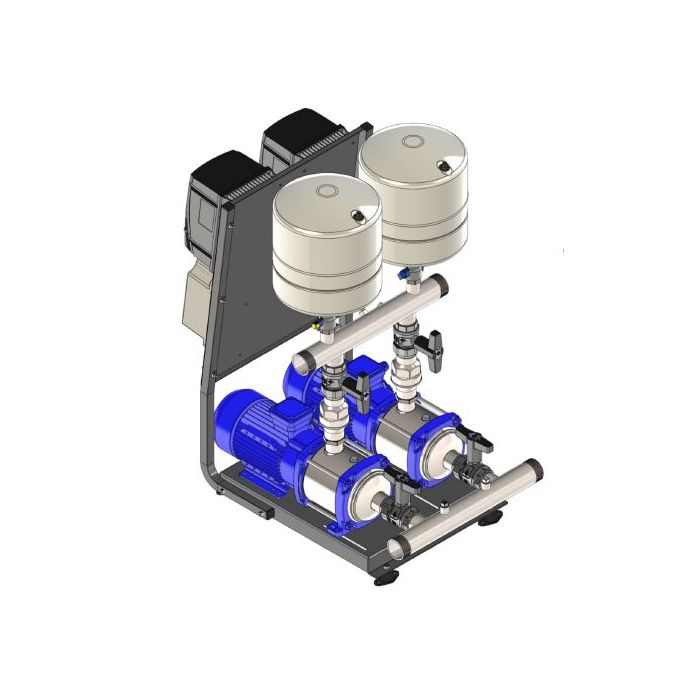

Trebles - ECO Boost - 5221-10HM05S-INV/1 Cold Water Booster Set - 230V - Single Phase - 166 Ltr/min.

The Trebles ECO-BOOST range is built to deliver reliable pressure boosting while keeping both energy use and installation footprint under control. Drawing on more than 60 years of manufacturing experience, it provides a simple but high-quality answer for water boosting systems.

In operation, a pressure transducer continuously measures system pressure. As soon as pressure falls because an outlet has been opened, the unit starts automatically and returns the system to the chosen set point. Because the variable speed drives only run the pump at the speed required, the system can achieve substantial energy savings compared with conventional fixed-speed pump control.

The ECO-BOOST range is equipped with horizontal multi-stage stainless steel pumps and IE3 motors built in accordance with EN standards, supporting efficient, reliable and comfortable operation.

A wide choice of pumps, options and accessories allows an ECO-BOOST set to be configured around the needs of the application rather than forcing a one-size-fits-all package.

Key features include:

• 2 Year Guarantee
• Volt Free Contacts for BMS
• Overload Protection
• Anti-Vibration Mounts
• Duty/Standby with Assist
• Dry Run Protection
• Constant Pressure
• Flow Through Vessels
• Variable Speed
• Auto-Changeover

Trebles - Eco-Boost Range is now KUKreg4 Certified

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Flow rate: 166 Ltr/min.
• Water type: Clean or Discoloured
• Voltage: 230V

Established in 1966 as GM Treble, & undergoing a rebrand in 2021 to Trebles, Trebles has over 60 years of experience in the pump and fluid circulation industry. Providing their own warranted, supported, high-quality and complete water pumping or boosting solutions. Trebles is still the largest independently owned pump distributor, and fluid circulation specialist in the UK.
