Trebles - Guardian - High-Level Alarm System for Sewage Station with Triton Float Switch

The Trebles - Guardian - High-Level Alarm System is a robust and reliable alert device designed to monitor liquid levels in water tanks, Pump stations, and similar applications. It is engineered to deliver prompt warnings when water levels rise above acceptable thresholds, ensuring safe and efficient operation. This alarm system can be activated using a Switched input, such as a float or pressure Switch, and can operate via either a closed or open circuit. This item comes with the Triton Controls - LR07 10m Potable Water Float Switch attachment.

Key Features

• Weather-Resistant Design: Housed within an IP66-rated enclosure, the Trebles - Guardian - Alarm System is suitable for indoor and outdoor use and offers excellent resistance to dust and water ingress
• Power LED Indicator: A blue LED provides a constant light, indicating that the system is powered and operational
• External Connectivity: The system supports additional outputs via an auxiliary connection for beacons, sirens, or other external devices. It also features a volt-free relay output for integration with existing systems
• Test and Mute Functions: The test button enables operators to check the alarm functionality without triggering the system. The mute button silences the audio alert without deactivating the visual, auxiliary, or relay outputs
• Audio and Visual Alerts: When activated, the system delivers both visual and audio indicators, allowing for immediate awareness of any issues. The audible alarm reaches up to 105dB, ensuring it can be heard in noisy environments
• Backup Battery: In the event of a power failure, the integrated backup battery allows the alarm to function for up to 72 hours, safeguarding operations during outages
• This item comes with the Triton Controls - LR07 10m Potable Water Float Switch attachment.

Specifications

• Inputs & Outputs: Supports a 200m max cable length with a 5V DC Switched input and 10mA current. Output relays can manage up to 250VAC at 10A, with a 12V DC auxiliary output at 250mA
• Power Supply: Operates on a 110-240V AC power source with a fused 250mA internal protection
• Temperature Range: Operational within an ambient temperature range of -10°C to +55°C.
• Dimensions: Compact design measuring 230 x 120 x 100 mm, with a lightweight 0.7 kg body

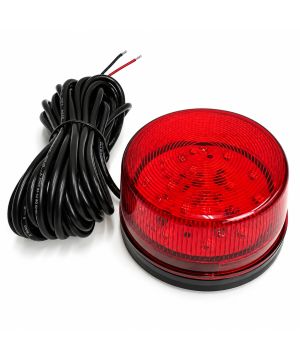

• Accessories: Compatible with a flashing red beacon, DPT float Switches, and a GSM upgrade module for enhanced alert capabilities

The Guardian - Alarm System is designed for easy installation with tool-free wiring, making it suitable for high or low-level alarms in water tanks, Pump stations, and industrial environments. Its configurable input options and durable design make it an essential safety tool for ensuring continuous operation and preventing system overload.

Real-world product applications

• Handling liquids containing suspended solids
• Supporting drainage in foul-water installations
• Assisting with wastewater movement on sites and properties

Established in 1966 as GM Treble, & undergoing a rebrand in 2021 to Trebles, Trebles has over 60 years of experience in the pump and fluid circulation industry. Providing their own warranted, supported, high-quality and complete water pumping or boosting solutions. Trebles is still the largest independently owned pump distributor, and fluid circulation specialist in the UK.
