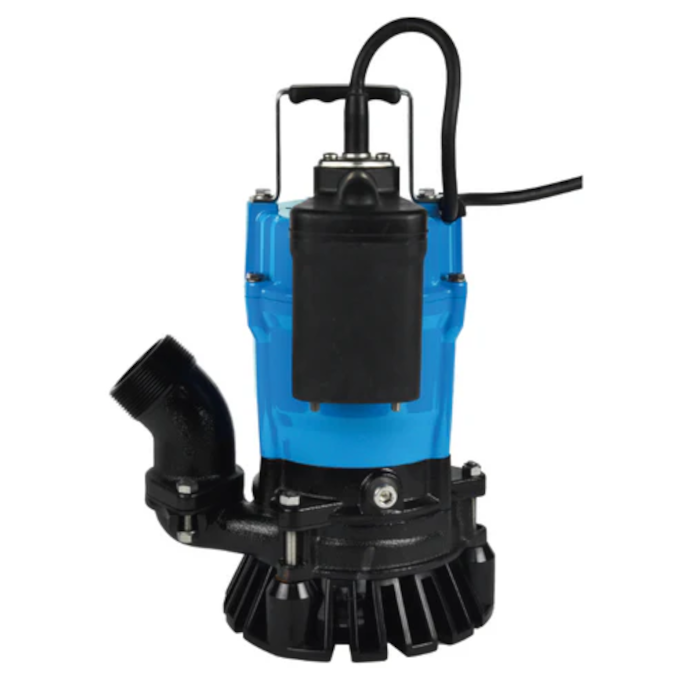

Tsurumi - HS3.75S Submersible Pump - Sensor Switch - 110V

The Tsurumi - HS3.75S Submersible Pump - 10-10-1326 - Sensor Switch - 110V (SKU 10-10-1326) is a powerful and versatile submersible pump designed for efficient water management across various Uses. This robust pump combines durability, dynamic performance, and advanced features to handle challenging pumping tasks with consummate ease. Key Features

• Motor Output: 1 HP, single-phase
• Discharge Size: 75 mm bore for high-capacity water removal
• Voltage: 110V for standard residential and light commercial usage
• Built-in Agitator: Suspends solids to prevent blockages
• Urethane Semi-Vortex Impeller: Ensures maximum durability and maintains pump dynamic performance
• Dual Inside Mechanical Seal: Features silicon carbide faces for extended operational life
• Oil Lifter: Patented technology provides continuous lubrication to seal faces
• V-Ring Seal Protector: Guards the mechanical seal against abrasive particles
• Sensor Switch: Automatic operation for efficient water level control

Key Product Spec

• Cable Length: 9.75 metres for flexible positioning
• Dimensions: 316 mm diameter x 387 mm height
• Continuous Running Water Level: 89 mm
• Weight: 22.2 kilogrammes
• Maximum Head: 18.9 metres

Uses The HS3.75S is ideal for:

• Construction site drainage
• Pond management
• Sump pump Uses
• Commercial and industrial wastewater handling

With its robust construction and innovative features, the Tsurumi - HS3.75S Submersible Pump is an excellent choice for professionals and homeowners seeking a reliable solution for challenging water removal tasks.

For the automatic control of water levels, theHSseries is available with sensor and float switches: The Sensor switch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the level of the water entry of the volute at 50mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with optional extensions, to enable a lower "on" and "off" level.

Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.

Thefloat-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 310 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 110V
• Maximum head: 18m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
