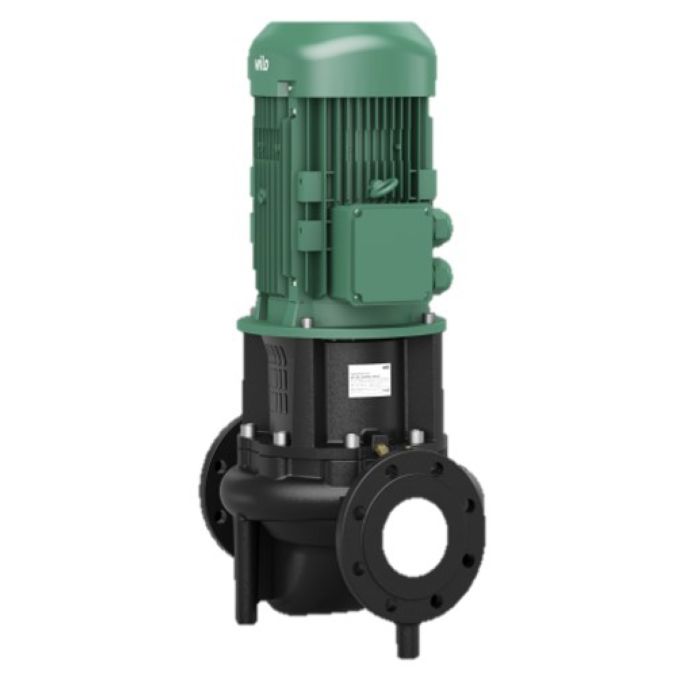

Wilo - Cronoline IL 80/160-1,5/4 Centrifugal Pump - 400V - Three Phase - 1.5kW

The Wilo - Cronoline IL 80/160-1,5/4 Centrifugal Pump - 400V - Three Phase - 1.5kW is a centrifugal pump designed to transfer clean water or liquids in circulation, boosting, or supply duties.

With three-phase power and 400V supply, it is built to deliver dependable hydraulic performance for a wide range of general pumping applications.

Single-stage, low-pressure Centrifugal Pump in in line design with a mechanical seal, flange connection with pressure measuring connection R 1/8, lanternn, coupling and IEC standard motor.

Order the Wilo - Cronoline range from Pumpify and receive free standard delivery.

Permissible temperature range -20 °C to +140 °C, Mains connection 3~400 V, 50 Hz (others on request), Protection class IP 55, Nominal diameter DN 32 to DN 250, and Max. operating pressure 16 bar. (25 bar. on request).

Pump housing and lanternn: Standard: EN-GJL-250; optionally spheroidal Cast Iron EN-GJS-400-18-LT, Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10, Shaft: 1.4122, and Mechanical seal: AQEGG; other mechanical seals on request.

• Reduced life cycle costs thanks to optimized efficiency
• Standard condensate drainage holes in the motor housings
• Can be utilised flexibly in air-conditioning and cooling systems, with application benefits due to direct draining of condensate via optimised lanternn design (patented)
• High standard of corrosion protection thanks to cataphoretic coating
• High worldwide availability of standard motors (according to Wilo - specifications) and standard mechanical seals

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Operating pressure: 16 Bar.
• Flow rate: 1450 Ltr/min
• Voltage: 400V

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
