Wilo - Economy MHIE 406N-2G EPDM 1.4301 Centrifugal Pump - 400V - Three Phase - Obsolete

Order the Wilo - Economy MHIIE 406N-2G EPDM 1.4301 Centrifugal Pump from Pumpify and receive free standard delivery.

Need technical advice on the product? Give our technical team a call on: 0800 008 6405

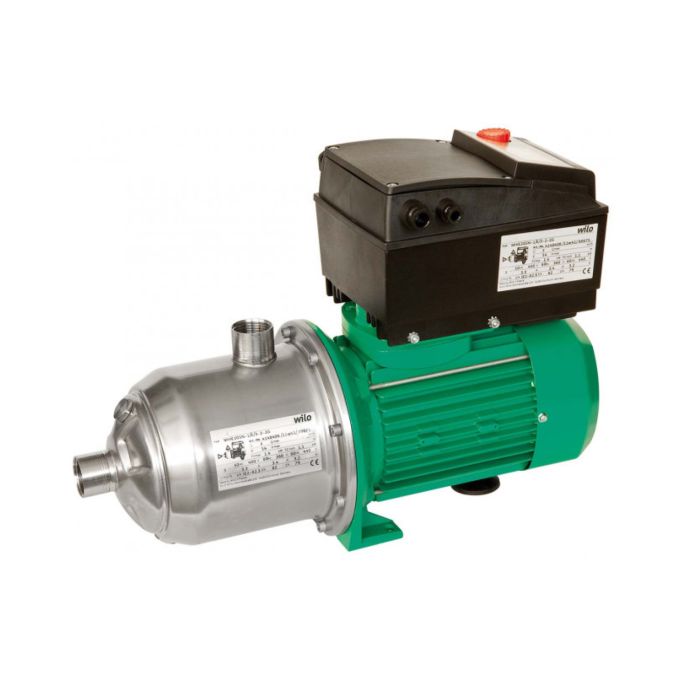

Multistage, non-self-priming, horizontal high-pressure Centrifugal Pump in block design with horizontal suction port and vertical pressure port and built-in, air-cooled frequency converter. The integrated frequency converter enables variable speed, pressure and PID control.

Speed control

"Speed control" : Manually with green button or via external signals, "Differential pressure, constant" : Pressure control with pressure sensor, setpoint adjustment via green button or via external signals, and "PID control": other constant control variables (temperature, volume flow, pressure....) with sensor, setpoint adjustment with green button, by means of external signals.

The electronic module delivers various protective functions. They include overload protection, the detection of low water, mains undervoltage or overvoltage, high ambient temperature, missing phases, blocked pumps and short-circuits. Error messages are issued on the display.

Short-circuit-proof +24 V voltage output with max. contact strength of 30 mA is present on the electronic module. The module has potential-free contacts for SSM, red and green LED for ON/OFF signal.

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Voltage: 400V
• Guarantee: 1 year guarantee

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
