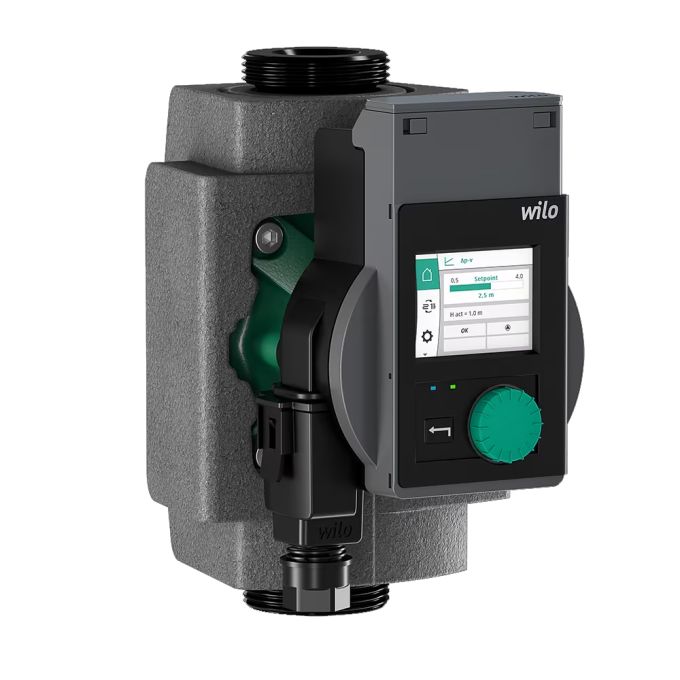

Wilo - Stratos PICO 25/0,5-6-130 Glandless Circulator Pump - 230V - Single Phase - 10 Bar. - 130mm

Wilo-Stratos PICO, electronically controlled high-efficiency pump

Glandless circulator with screwed connection, blocking-current proof synchronous motor using ECM technology (up to 90 % energy saving compared to an uncontrolled pump) and built-in electronic power control for continuous differential pressure control.

can be utilised for all heating and air-conditioning applications (-10 °C to +110 °C).

Control mode can be selected in accordance with the radiator/underfloor heating application.

Control modes:

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Min. fluid temperature: -10 °C
• Max. fluid temperature: 110 °C
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 40 °C
• Maximum operating pressurePN: 10 bar
• Minimum suction head at 50 °Cm: 0,5 m
• Minimum suction head at 95 °Cm: 3 m
• Minimum suction head at 110 °C: 10 m
• Permanent, automatic power adjustment to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting)
• Settings assistant for number of radiators or underfloor heating area
• Variable differential pressure (Δp-v)
• Constant differential pressure (Δp-c)
• Constant speed (n-const.)

Functions:

• Automatic night setback
• Fault/warning message display including description and error code in plain text
• Venting routine for automatic venting of the rotor chamber
• Manual restart function for additional deblocking of the pump as required
• Key lock
• Function for resetting the electricity meter or for resetting the settings to the factory settings
• Dry-running detection
• Automatic deblocking function and integrated motor protection
• Supports hydronic balancing with the Wilo-Assistant app

Display:

• Control mode
• Setpoint
• Volume flow
• Delivery head
• Speed
• Power consumption
• Electric consumption
• Active influences (e.g. night setback, venting)

Version:

• Graphic colour display with operation via one button manual operation level
• Slot for Wilo communication modules as an interface for e.g. Bluetooth
• Use the Wilo-Assistant app to read and set operating data and –among other things– set up a commissioning protocol through the Bluetooth interface (as an accessory)
• Minimal consumption only 3 W
• Equipped as standard with a thermal insulation shell
• 5-year warranty

Optional accessories:

• Wilo-Smart Connect module BT for Bluetooth connection to mobile devices via Wilo-Assistant app
• The Wilo-Connect module BMS expands the interface for use in building management systems (BMS)
• Wilo-Connect module Modbus RTU expands the interface for use in building management systems

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
