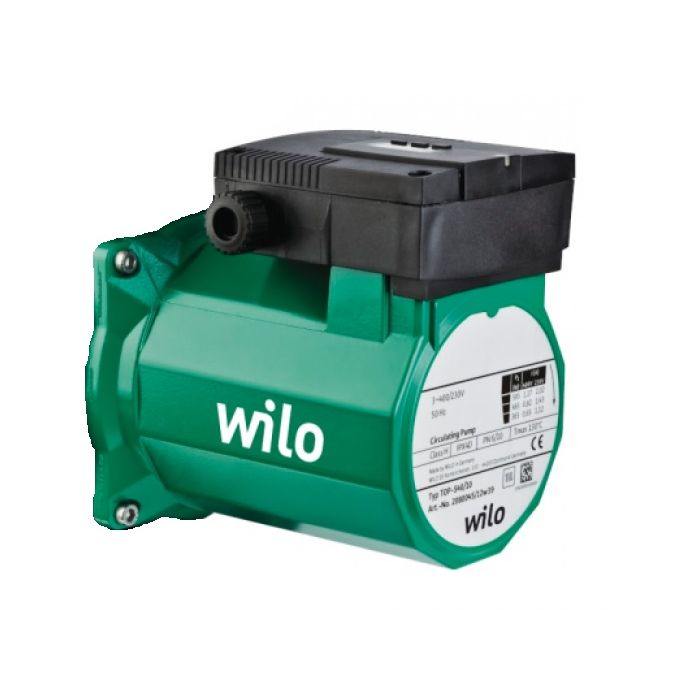

Wilo - TOP-S 65/7 REPLACEMENT Head - 400V - 3 Phase

Name: Wilo - TOP-S 65/7 REPLACEMENT Head - 400V - 3 Phase
Brand: Wilo
SKU: 2046675/29991433
Price: 1230.84 GBP
Availability: InStock

Part Number:

2046675/29991433

The Wilo - TOP-S 65/7 REPLACEMENT Head - 400V - 3 Phase is a component designed to support the intended pump or pipework installation.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,893.60 RRP £1,230.84 £1,025.70

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Wilo - TOP-S 65/7 REPLACEMENT Head - 400V - 3 Phase - 2046675/29991433

Please ensure Top-S replacement head is designed and rated for your model of pump. Replacement heads cannot be returned if they have been attempted to be fitted. If unsure please contact 0800 008 6405.

Is applicable for hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits.

Maintenance-free glandless circulation pump with threaded or flange connection, pre-selectable speed stages for power adjustment.

Includes:

Pump
Thermal insulation
Including seals for threaded connection
Washers for flange screws (for nominal connection diameters DN 40 - DN 65)
System installation and operating instructions

Benefits:

Direction of rotation signal lamp for displaying the correct sense of rotation (only with 3~)
Manual power adjustment with 3 speed stages
Pump volute casing with cataphoretic coating (KTL) protects against corrosion due to condensation formation

Technical data

Permitted temperature range -20 °C to +130 °C, for short periods (2 h) to +140 °C (TOP-S 25/13, 80/15, 80/20: -20 °C to +110 °C)
Mains connection:

1~230 V, 50 Hz (depending on type)
3~230 V, 50 Hz (with optional switching plug)
3~400 V, 50 Hz

Protection class IP X4D
Screwed connection or flange connection (depending on type) Rp 1 to DN 100
Max. working system pressure of standard version: 6/10 bar or 6 bar (special version: 10 bar)

Materials

Pump volute casing: Grey ductile cast iron
Hydraulic impeller: Plastic
Shaft: grade 304 stainless steel
Bearing: Carbon, metal impregnated

Construction:

Glandless circulation pump with screwed connection or flange connection.

Application

Hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits

Equipment/function

Operating modes

Speed-stage switching

Manual functions

Setting the speed stages: 3 speed stages (2 speed stages for 1~ pumps with P2 ≥ 350 W)

Automatic functions

Internal protection against non-approved high winding temperatures (only for pumps for which P2 ≤180 W)

Signal and display functions

Thermal winding contact (WSK, potential-free NC contact) only for pumps for which P2 ≥180 W) for full motor overload protection in all speed levels with optional tripping unit SK 602N/SK 622N
Direction of rotation control light (only for 3~pumps )
Display of selected speed stage

Dual pump management (twin-head pump or 2 x single pumps)

Main/standby operation or parallel operation (for automatic system fault condition-actuated switchover/elapsed operating time-dependent pump cycling, a corresponding switchgear must be provided on-site)

Equipment

For flange-end pumps: Flange versions

Standard version for DN 40 to DN 65 pumps: PN 6/10 combination flange (PN 16 flange in compliance with EN 1092-2) for PN 6 and PN 16 counter flanges,
Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 in compliance with EN 1092-2) for PN 6 counter flange

Cable inlet possible from both sides (only for 1~pumps and 3~pumps with P2≥180 W)
Thermal insulation as standard for heating applications

Type key

Example:	TOP-S 40/10
TOP-S	Standard pump (screw-end pump or flange-end pump)
40/	Nominal connection diameter
10	Nominal delivery head [m] at Q = 0 m³/ h

More Information
Price	£1,025.70
Manufacturer	Wilo
Warranty	1 year guarantee
Bars	10 bar
Impeller Type	Single
Electrical supply	400V
AC Power	Three Phase
Switch	None
Duty Type	Commercial
Pump Type Filter	Replacement Pump Head
Next Day Delivery	No
Connection Size	N/A
Connection Type	N/A
Manufacturers Part Number	29991433
