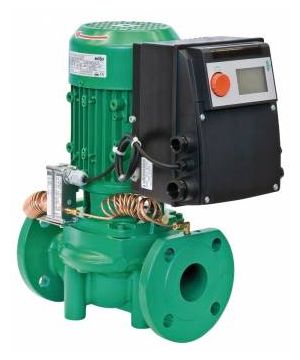

Wilo - VeroLine IP-E65/110-2,2/2-R1-IE4 Centrifugal Pump - 380v - Three Phase - 10 Bar. - 340mm

Glanded Centrifugal Pump with in line design for pipe Installation manual with built-in frequency converter for electronic control for constant or variable differential pressure (dp-c/dp-v). Three-phase AC motor with frequency converter.

Product detail:

Single-stage low-pressure Centrifugal Pump with one-piece shaft, Spiral housing, in line design, PN 16 flange, drilled according to EN 1092-2, Pressure measuring connections (R 1/8) for mounted differential pressure sensor (version ...-R1 without differential pressure sensor), Pump housing and motor flange with cataphoretic coating as standard, and Mechanical seal for water feed up to T=120 °C. A glycol admixture of 20 to 40% by vol. is permitted up to Tmax = +40 °C. Other mechanical seals or other fluids/temperatures on request..

Accessories:

Mounting brackets for fixing to the foundation, IR-Monitor, IR-Stick, IF module PLR, IF module LON, IF module Modbus, IF module BACnet, IF module CAN, Control systems VR-HVAC/CCe-HVAC/SCe-HVAC, and Differential pressure sensor (DDG) sets 0-10 V for pumps in version ...-R1.

Standard equipment:

• One-button manual operation level for:
  • Pump On/Off
  • Setpoint and speed adjustment
  • Selecting the control mode: Δp-c (constant differential pressure), Δp-v (variable differential pressure), PID controller, n-constant (constant speed)
  • Selection of operating mode in dual pump operation (main/standby operation, parallel operation)
  • Configuration of operating parameters
  • Fault acknowledgement
• Pump display for displaying:
  • Control mode
  • Setpoint (e.g. differential pressure or speed)
  • Error and warning messages
  • Actual values (e.g. power consumption, actual value of the sensor)
  • Operating data (e.g. operating hours, energy consumption)
  • Status data (e.g. status of SSM and SBM relay)
  • Device data (e.g. pump name)

Additional Product Functions:

• Interfaces: Control input "Overriding Off", "External pump cycling" (effective only in dual pump operation), analogue input 0…10 V, 2…10 V, 0…20 mA, 4…20 mA for control mode (DDC) or for remote setpoint adjustment, analogue input 0…10 V, 2…10 V, 0…20 mA, 4…20 mA for actual value signal of the pressure sensor, Infrared interface for wireless communication with the operating and service unit Wilo-IR-Stick/IR-Monitor, plug-in position for Wilo - IF-Module Modbus, BACnet, CAN, PLR, LON for connecting to the building automation, configurable, potential-free fault and operating/ready message, interface for dual pump communication
• Adjustable time interval for pump cycling (in dual pump mode)
• Integrated full motor protection
• Different operating modes for heating mode (HV) or air-conditioning mode (AC)
• Access disable
• Different operation levels: Standard / Service
