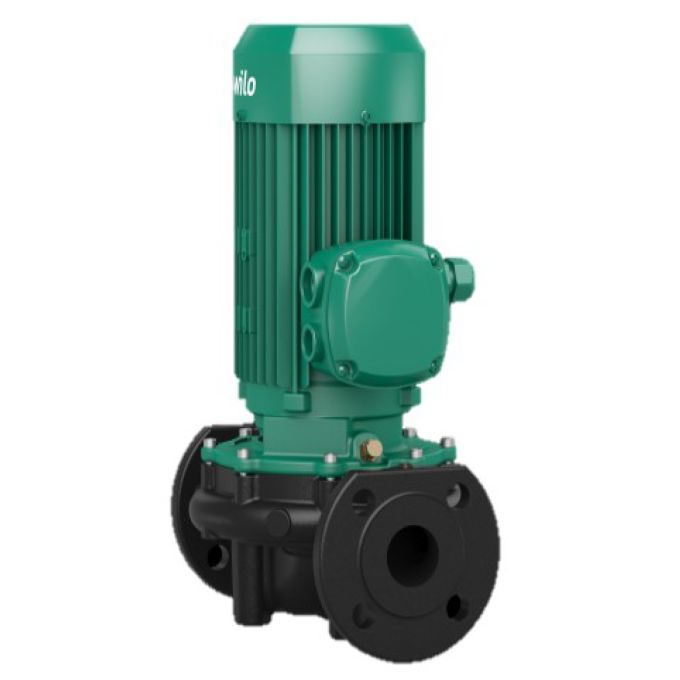

Wilo - Veroline IPL 100/165-2,2/4 Centrifugal Pump - 2.20 kW

The Veroline IPL Centrifugal Pumps are a range of single-stage, low-pressure Centrifugal Pump in in line design with mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.

Purchase from Pumpify and receive free standard delivery.

High standard of corrosion protection thanks to cataphoretic coating, Standard condensate drainage holes in the motor housings and lanternns, Series Product detail: motor with one-piece shaft, Version N: Standard motor V1 with Stainless Steel plug shaft, and Bidirectional, force-flushed mechanical seal.

Permissible temperature range -20 °C to +120 °C, Mains connection 3~400 V, 50 Hz (others on request), Protection class IP 55, Nominal diameter Rp 1 to DN 100, and Max. operating pressure 10 bar. (special version: 16 bar.).

• Pump housing and lanternn: EN-GJL-250
• Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
• Shaft: 1.4021
• Mechanical seal: AQEGG; other mechanical seals on request

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Operating pressure: 10 Bar.
• Flow rate: 1450 Ltr/min
• Voltage: 400V
• Maximum head: 7.5m

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
