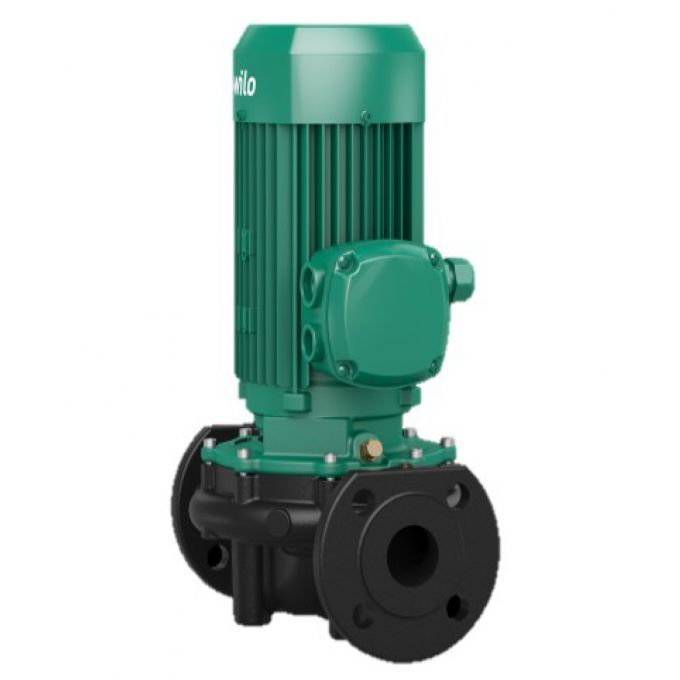

Wilo - VeroLine IPL32/135-1,5/2-IE3 Centrifugal Pump - 400V - Three Phase - 363 Ltr/min. - 260mm

The Wilo - VeroLine IPL32/135-1,5/2-IE3 Centrifugal Pump - 400V - Three Phase - 363 Ltr/min. - 260mm is a centrifugal pump designed to transfer clean water or liquids in circulation, boosting, or supply duties.

With three-phase power, 400V supply and flow rates up to 363 Ltr/min, it is built to deliver dependable hydraulic performance for a wide range of general pumping applications.

Single-stage glanded centrifugal pump with compact in-line design with directly flanged three-phase current motor and one-piece shaft or with lanternn and standard motor rigidly connected by coupling (N version). The IPL series is suitable for pipe installation or installation on a base. Mounting brackets are available as accessories. With force-flushed circulation, bidirectional bellows mechanical seal and cavitation-reducing plastic impeller.

Flanges with pressure measuring connections R 1/8. The pump housing and lanternn are cataphoretic-coated.

The motor terminal box can be made of metal or plastic. If a metal terminal box is absolutely necessary, please order the appropriate special variant.

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Min. fluid temperature: -20C
• Max. fluid temperature: 120C
• Min. ambient temperature: -15C
• Max. ambient temperature: 40C
• Maximum operating pressurePN: 10bar
• Minimum efficiency index (MEI): ≥0,4

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
