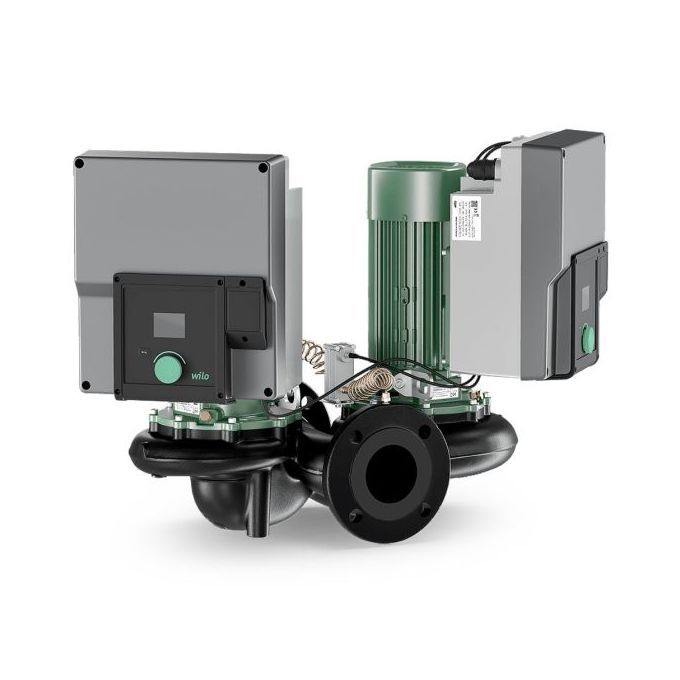

Wilo - Yonos GIGA2.0-D 65/1-16/3,0 Centrifugal Pump - 380v - Three Phase - 16 Bar. - 340mm

In-line pump with high energy efficiency with ECmotor of energy efficiency classIE5 in accordance with IEC60034-30-2, hydraulics with minimum efficiency index MEI≥0.4 and electronic power adjustment in glanded pump design. The pump is configured as a single-stage low-pressure centrifugal pump with flange connection and mechanical seal. The Yonos GIGA2.0-D has been predominantly designed for pumping heating water (acc. to VDI 2035), Cold water and water-glycol mixtures without abrasive substances in heating, air conditioning and cooling systems.

Design:

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Min. fluid temperature: -20C
• Max. fluid temperature: 120C
• Min. ambient temperature: 0C
• Max. ambient temperature: 50C
• Maximum operating pressurePN: 16bar
• Minimum efficiency index (MEI): ≥0,4
• Single-stage low-pressure centrifugal pump with one-piece shaft in monobloc design
• Spiral housing in in-line design (suction and discharge ports with the same flanges in a line)
• PN16 flange in accordance with EN1092-2
• Pressure measuring connections (R 1/8) for mounted differential pressure sensor (version ...-R1 without differential pressure sensor)
• Pump housing and lanternn/motor flange with cataphoretic coating as standard
• Mechanical seal for pumping water up to .=+120C. A glycol admixture of 20% to +40% by volume is permitted up to T≤+40C. An alternative mechanical seal must be provided in water-glycol mixtures with glycol proportions >40% up to max. 50% by volume and a fluid temperature of >+40C up to max. +120C or fluids other than water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended
• Connection voltages:
  • 3~440V 10% 50/60Hz; 3~400V 10% 50/60Hz; 3~380V -5% +10% 50/60Hz
  • Version M-: 1~220 V...240 V (10%), 50/60Hz
• Compliance with electromagnetic compatibility without additional measures
  • Interference emission for residential environment according to EN61800-3:2018
  • Interference immunity for industrial environments according to EN61800-3:2018

Control modes:

• Variable differential pressure (dp-v)
• Constant differential pressure (dp-c)
• Constant speed (n-const.)
• User-defined PID control

Functions:

• Operating modes of twin-head pump: Main/standby operation, efficiency-optimised parallel operation for dp-c and dp-v
• Integrated full motor protection

Display in the "Home screen" of the graphic display:

• Control mode currently set
• Current setpoint
• Current actual value
• Current volume flow (only if a differential pressure sensor is connected)
• Current power consumption

Version:

• 1analogue input: 0 ... 10V, 2 ... 10V, 0 ... 20mA, 4 ... 20mA only for sensor value from differential pressure sensor
• 1analogue input: 0 ... 10V, 2 ... 10V, 0 ... 20mA, 4 ... 20mA only for external setpoint sensor
• 1digital input (Ext. OFF)
• 2Signal relays for run signals and fault messages
• Slot for Wilo-CIF modules with interfaces for building automation (BA) (optional accessories: CIF modules Ethernet, Modbus RTU, BACnet MS/TP, LON, PLR, CAN)
• Wilo Net as Wilo system bus for communication during twin-head pump operation
• Automatic emergency operation with definable pump speed for exceptional circumstances, e.g. bus communication or sensor value malfunction
• Rotatable, graphic colour display (2 inches) with one button manual operation level
• Integrated dual pump management (twin-head pumps are prewired) connection via Wilo Net
• Cable break detection when using an analogue signal (in connection with 2 ... 10V or 4 ... 20mA)
• Standard condensate drainage holes in the motor housing (closed upon delivery)
• Air vent valve on the lanternn

Scope of delivery:

• Pump
• Installation and operating instructions and declaration of conformity

Accessories must be ordered separately:

3mounting brackets with fixation material for installation on a base

• Blind flanges for twin-head pump housing
• For connection to building automation:
  • CIF module PLR
  • CIF module LON
  • CIF module BACnet MS/TP
  • Modbus RTU CIF module
  • CIF module CANopen
  • CIF module Ethernet Multi-protocol (Modbus TCP, BACnet/IP)
  • Connection M12 RJ45 CIF Ethernet
• Differential pressure sensor DPS2 ... 10V
• Differential pressure sensor DPS4 ... 20mA
