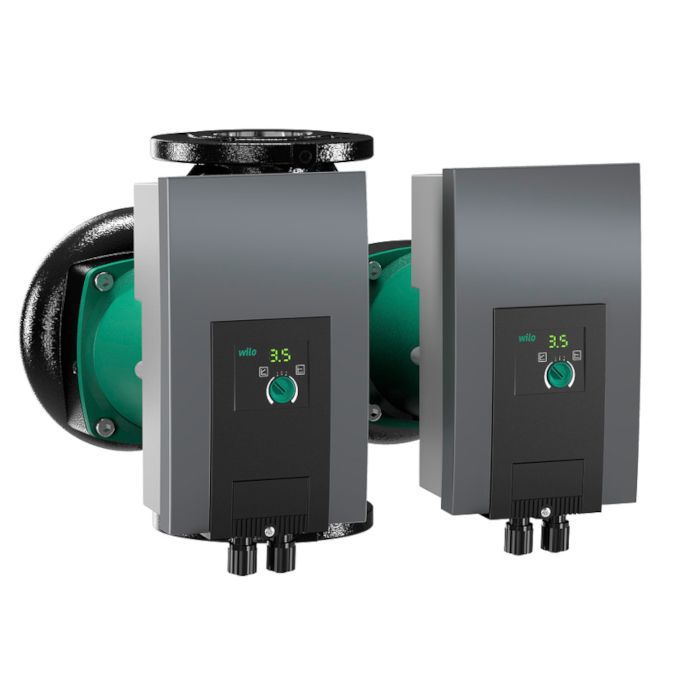

Wilo - Yonos Maxo-D 32/0,5-7 PN6/10 Circulator Pump - 230V - Single Phase - 10 Bar. - 220mm

The Wilo - Yonos Maxo-D 32/0,5-7 PN6/10 Circulator Pump - 230V - Single Phase - 10 Bar. - 220mm is a circulator pump designed to circulate water through heating, cooling, or hot water systems.

With single-phase power, 230V supply and pressure duties up to 10 Bar, it is built to support efficient system movement and dependable temperature control.

High-efficiency pump Wilo-Yonos MAXO-D, electronically controlled. Glandless twin-head pump, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. can be utilised for all heating, ventilation and air-conditioning applications.

Each pump can be operated in individual operation (main/standby operation). The connection module Yonos MAXO can be utilised for automatic fault-actuated switchover.

Standard-equipped with:

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Min. fluid temperature: -20 °C
• Max. fluid temperature: 110 °C
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 40 °C
• Maximum operating pressurePN: 10 bar
• Minimum suction head at 50 °Cm: 3 m
• Minimum suction head at 95 °Cm: 10 m
• Minimum suction head at 110 °C: 16 m
• Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
• 3 speed stages (n = constant)
• LED for setting the setpoint and displaying error messages
• Electrical connection with the Wilo plug
• Fault lamp and contact for collective fault signal

For flange-end pumps - flange versions:

• Standard version for DN 32 to DN 65 pumps: PN 6/10 combination flange (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counter flanges
• Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
