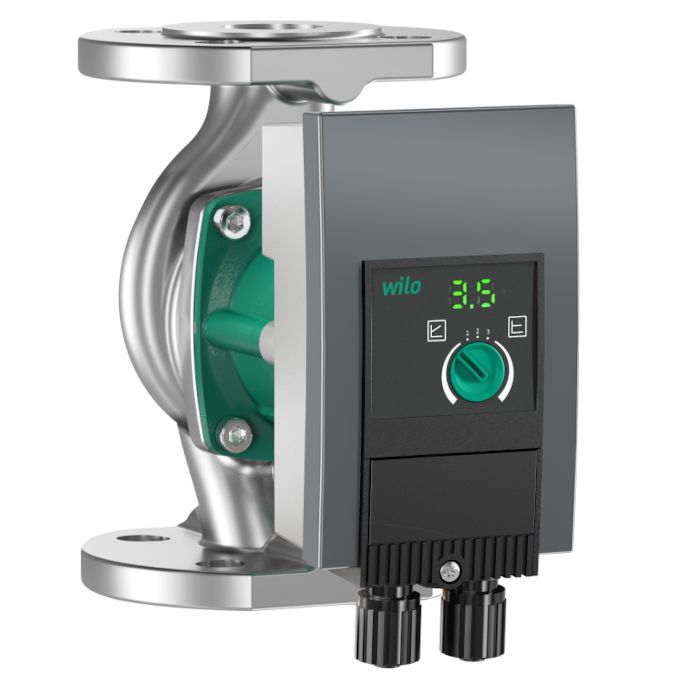

Wilo - Yonos Maxo-Z 50/0,5-9 PN6/10 Circulator Pump - 230V - Single Phase - 438 Ltr/min. - 280mm

The Wilo - Yonos Maxo-Z 50/0,5-9 PN6/10 Circulator Pump - 230V - Single Phase - 438 Ltr/min. - 280mm is a circulator pump designed to circulate water through heating, cooling, or hot water systems.

With single-phase power, 230V supply and flow rates up to 438 Ltr/min, it is built to support efficient system movement and dependable temperature control.

High-efficiency pump Wilo-Yonos MAXO-Z

is an electronically controlled,

Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. can be utilised for all domestic Hot water circulation systems in industry and building services.

Standard-equipped with:

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Max. fluid temperature: 80 °C
• Min. fluid temperature: 0 °C
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 40 °C
• Temperature range at max. ambient temperature +40 °CT: -20...+110
• Maximum operating pressurePN: 10 bar
• Minimum suction head at 50 °Cm: 3 m
• Minimum suction head at 95 °Cm: 10 m
• Minimum suction head at 110 °C: 16 m
• Max. permitted total water hardness: 3.57 mmol/l (20°dH)
• Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
• 3 speed stages (n = constant)
• LED for setting the setpoint and displaying error messages
• Electrical connection with the Wilo plug
• Fault signal light and contact for collective fault signal

For flange-end pumps - flange versions:

• Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
