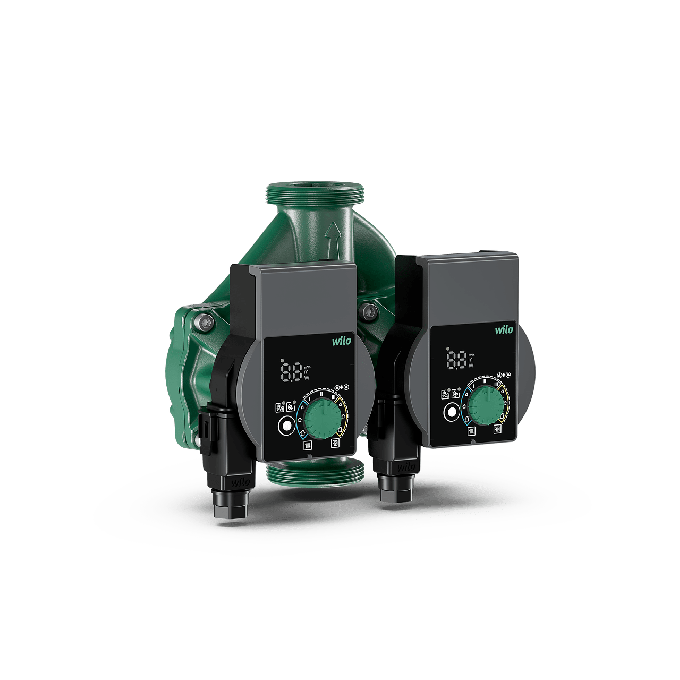

Wilo - Yonos Pico-D 30/1-8 Circulator Pump - 230V - Single Phase - 180mm

High-efficiency pump WILO-Yonos PICO-D, electronically controlled. Glandless twin-head pump with screwed connection, blocking-current proof synchronous motor according to ECM technology and built-in electronic performance control for variable differential pressure control. can be utilised for all heating and air-conditioning applications. Control mode can be selected in accordance with the radiator/underfloor heating application.

Each pump can be operated in individual operation (main/standby operation) or both pumps can be operated at the same time in parallel operation (parallel/peak-load operation). For an automatic fault-actuated switchover, a corresponding switchgear must be provided on-site.

Standard-equipped with:

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Min. fluid temperature: -10 °C
• Max. fluid temperature: 95 °C
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 40 °C
• Maximum operating pressurePN: 10 bar
• Minimum suction head at 50 °Cm: 0,5 m
• Minimum suction head at 95 °Cm: 3 m
• Minimum suction head at 110 °C: 10 m
• Preselectable control modes for optimum load adjustment: Differential pressure constant (Δp-c), differential pressure variable (Δp-v), constant speed (3 pump curves)
• Integrated motor protection
• LED for setting the setpoint, displaying the current consumption in watts and the flow rate in m³/h
• Automatic deblocking function
• Manual pump venting function for venting the rotor chamber
• Manual restart

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
