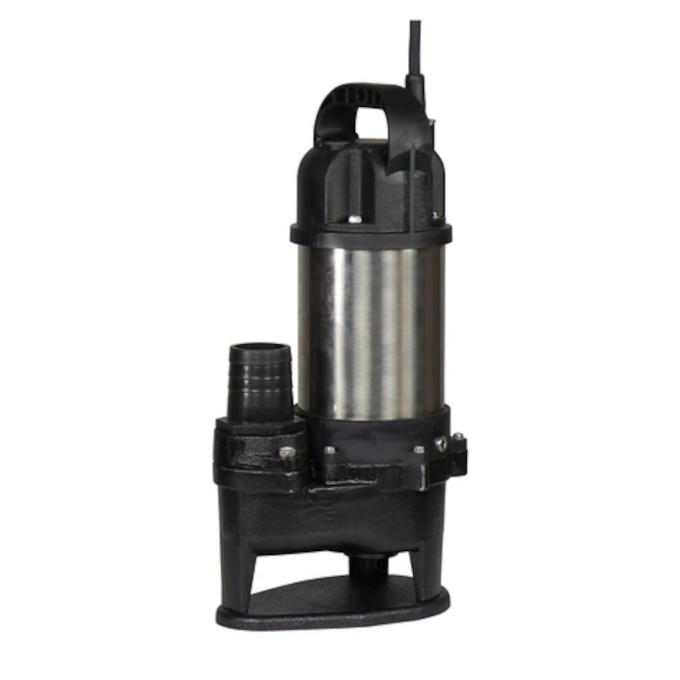

App SV-400 Portable Submersible Pump - 110V - Manual

The APP SV-400 Portable Submersible Pump - 15-10-1018 (SKU: 15-10-1018) is a versatile and powerful 110V manual pump designed for efficient water removal across numerous Uses. This vortex impeller pump combines robustness, portability, and dynamic performance to tackle challenging dewatering tasks with consummate ease.

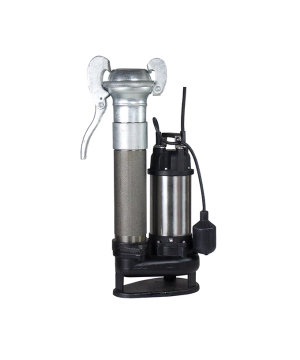

TheSVseries have vortex impellers and large pump casings for pumping light effluent, sewage and waste containing fibrous material, submerged debris and solids. Due to impeller material,SV-150(A/V)andSV-250(A/V)are suited to pumping soft and floating solids, but theSV-400(A)andSV-750(A)can pump hard solids and have base plates for portable use. ForSV-750models, a 89mm lever lock connection kit with a galvanised iron extension pipe, is an optional extra. Available as manual or with a pendant float switch, for automatic operation.SV-150(V)andSV-250(V)has a tube type float switch for narrow sump Uses.SVpumps are not recommended for ponds or water features.

Robust Construction

• Cast Iron pump casing with 304 Stainless Steel motor frame
• Thermoplastic motor head cover for enhanced durability
• Cast Iron impeller for managing fibrous material and hard solids

dynamic performance Specifications

• Power: 0.40 kW
• Flow rate: 350 litres per minute
• Maximum head: 8 metres
• Free passage: 35 millimetres

Portability

• Compact dimensions: W160 x L215 x H420 millimetres
• Lightweight design: 11.55 kilogrammes

Versatility

• Ideal for sewage, drainage, and dirty water Uses
• Suitable for various domestic and industrial uses

• 50 millimetre outlet for efficient water discharge
• 10 metres of heavy-duty rubber power cable included
• Self-priming capability for immediate operation

• Easy to Use: The pump's manual operation and self-priming feature ensure swift setup and straightforward operation
• Efficient dynamic performance: Submerged operation provides positive fluid pressure at the inlet, enhancing overall efficiency
• Quiet Operation: Submersible design results in minimal noise during use
• Durability: Cast Iron construction with a protective base plate ensures longevity in demanding environments
• Versatility: Capable of handling both soft solids and fibrous materials up to 35 millimetres in size

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 350 Ltr/min
• Water type: Dirty Water
• Voltage: 110V
• Maximum head: 9m
