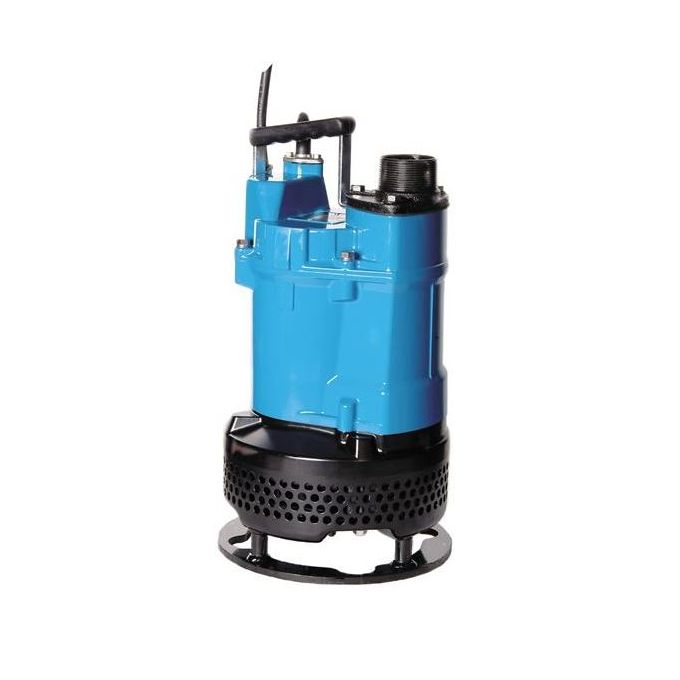

Tsurumi - KTV2-15 Submersible Pump – With Agitator - 400V - Manual

The Tsurumi - KTV2 range are fitted with vortex impellers in chromium iron for excellent wear resistance and rubber Pump - 10-10-1236 chambers. Each model has a built in agitator, also in chromium iron, to stir sand, silt, pulverized solids etc. into suspension for pumping.

The heavy duty motors are fitted with internal overloads, enabling simple installation and direct connection to the power supply. The 403 Stainless Steel shafts are fitted with ultra hard-wearing, twin mechanical seals (inboard: silicon carbide-silicon carbide), in an oil chamber, with patented oil lifters, for positive seal lubrication in any position. This feature, combined with the water and air cooling channel to the top outlet, enables the Tsurumi - KTV2 pumps to operate for extended periods in little or no water.

TheKTVseries is a range of lightweight, three phase, contractors' pumps, which are constructed in superior grade materials throughout to give exceptional performance in harsh operating conditions. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. Maintenance is straightforward, with simple replacement of parts, without the need for special tools. High-performance motors feature thermal protection, enabling simple installation and direct connection to the power supply.

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 425 Ltr/min
• Water type: Dirty Water
• Maximum head: 20m
• Cable length: 20m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
