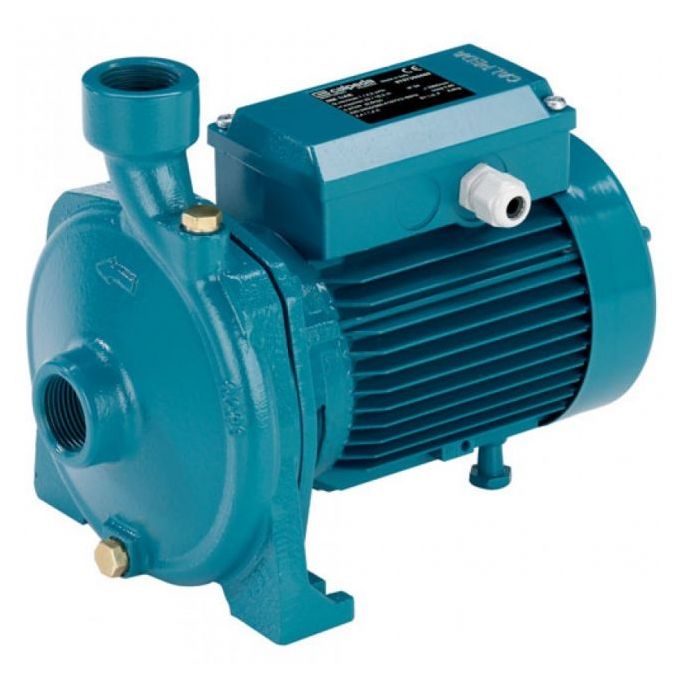

Calpeda - NMM 2 A/A Centrifugal Pump - 230V - 240V - 100 Ltr/min - 33.5m Head

Name: Calpeda - NMM 2 A/A Centrifugal Pump - 230V - 240V - 100 Ltr/min - 33.5m Head
Brand: Calpeda
SKU: 60120040000
Price: 431.62 GBP
Availability: InStock

Part Number:

60120040000

Calpeda NMM is the single-phase version within the NM family of close-coupled centrifugal pumps with screwed (threaded) connections.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£431.62 £359.68

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Calpeda NMM is the single-phase version within the NM family of close-coupled centrifugal pumps with screwed (threaded) connections. NMM variants are supplied with a single-phase 230 V motor and thermal protection, making them suitable for sites where three-phase power is not available.

Typical applications

Clean-liquid circulation and general water handling
Water supply, HVAC/circulation and irrigation duties (application dependent)

Key features (range dependent)

Compact close-coupled unit
Single-phase motor with thermal protector

NM: Single-impeller configuration
NMD: Twin impellers mounted back-to-back, designed to balance axial thrust
Connections: ISO 228/1 (BS 2779) threaded ports
NM / NMD: Cast Iron pump casing and lanternn bracket
B-NM / B-NMD: Bronze pump casing and lanternn bracket (pumps are delivered fully painted)

Appropriate applications include: -

- Clean liquids without abrasives, which are non-aggressive for the pump materials ( solids content up to 0.2%).- Water supply.
- Heating, air-conditioning, cooling and circulation plants.
- Civil and industrial applications.- Fire fighting applications.
- Irrigation.

Pump specifications

Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.

The Calpeda NMM 2 A/A Centrifugal Pump - 230v is a Centrifugal Pump item. Voltage for this item is 240V. It has an actual flow rate of 100 Ltr/min. The maximum head for this pump is 33.5m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

Flow rate: 100 Ltr/min
Water type: Clean or Discoloured
Voltage: 240V
Maximum head: 33.5m

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£359.68
Manufacturer	Calpeda
Warranty	1 year guarantee
Electrical supply	240V
AC Power	Single Phase
Flow Rate	100 Ltr/min
Max Head	33.5m
Water type	Clean or Discoloured
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Next Day Delivery	No
Manufacturers Part Number	60120040000
