Calpeda - NMM 1/AE Centrifugal Pump - 240V - 70 Ltr/min - 22m Head

• NM: Single-impeller configuration
• NMD: Twin impellers mounted back-to-back, designed to balance axial thrust
• Connections: ISO 228/1 (BS 2779) threaded ports
• NM / NMD: Cast Iron pump casing and lanternn bracket
• B-NM / B-NMD: Bronze pump casing and lanternn bracket (pumps are delivered fully painted)

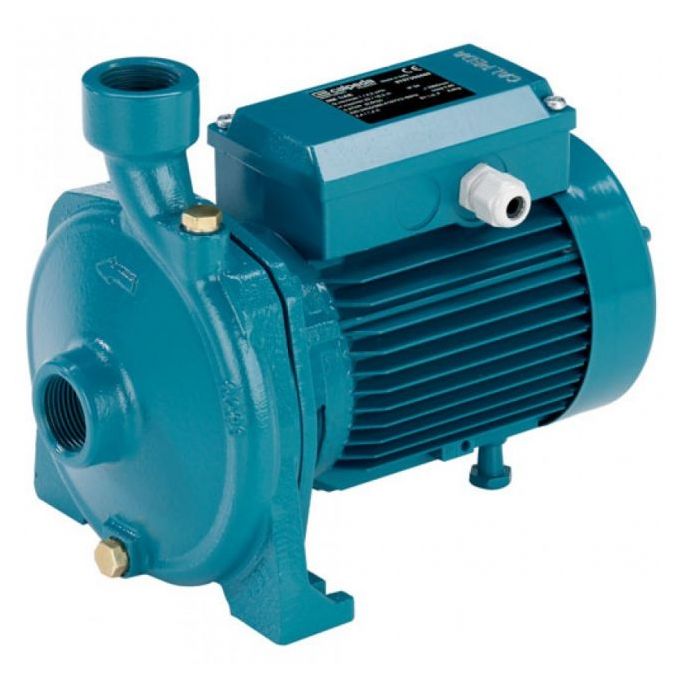

Calpeda NMM 1/AE close coupled, centrifugal end suction pump with screwed (threaded) connection and 0.37KW (0.5HP) 240V 1Ph 50Hz motor.

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.

Appropriate applications include: -

- Clean liquids without abrasives, which are non-aggressive for the pump materials ( solids content up to 0.2%).- Water supply.
- Heating, air-conditioning, cooling and circulation plants.
- Civil and industrial applications.- Fire fighting applications.
- Irrigation.

The Calpeda NMM 1/AE Centrifugal Pump - 240v is a Centrifugal Pump item. Voltage for this item is 240V. It has an actual flow rate of 70 Ltr/min. The maximum head for this pump is 22m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Flow rate: 70 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 22m
