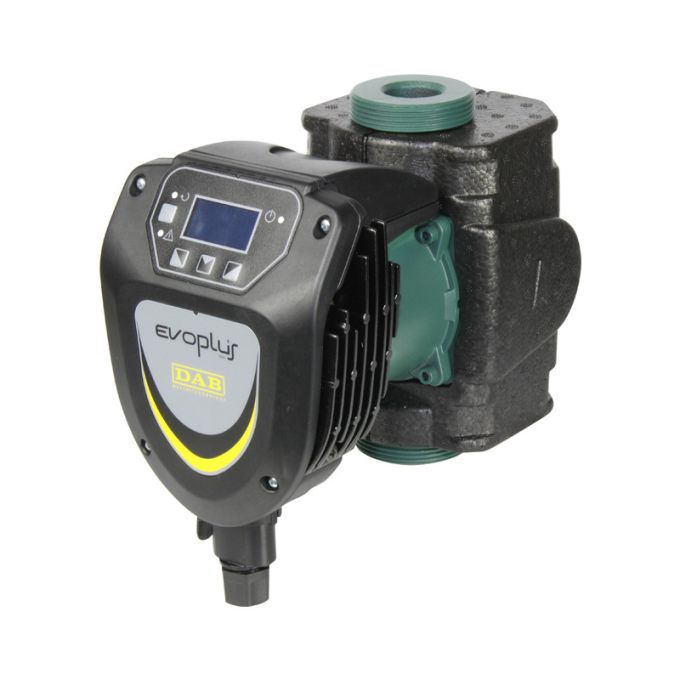

DAB - EVOPlus 80/180 XM Electronic Commercial Heating Pump Circulator - 230V - Single Phase - Threaded 2" Connection - 200 Ltr/min - 11m Head

DAB Evoplus 80-180XM Light Commercial Heating Pump Circulator, 230v. DAB Evoplus 80-180XM electronic circulator is applied primarily for one and two-pipe heating systems.

EVOPLUS electronic circulators can be utilised in heating,
ventilation and air conditioning systems for residential and
commercial buildings. In all correctly sized installations,
the electronically controlled wet rotor pumps constantly
ensure sufficient power and, simultaneously, lower noise
emissions, greater comfort and a significant reduction in
running costs. All models fitted with flanged pump body
are available in both single and twin versions. The user
interface is easy to use and easy to understand.

The DAB Evoplus 80/180 XM Electronic Commercial Heating Pump Circulator - 230v - Single Phase - Threaded 2" Connection is a Circulator Pump item. Voltage for this item is 230V. It has an actual flow rate of 200 Ltr/min. The maximum head for this pump is 11m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 16 Bar.

Key Product Features and Use

• Operating pressure: 16 Bar.
• Flow rate: 200 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 230V
• Maximum head: 11m

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency
