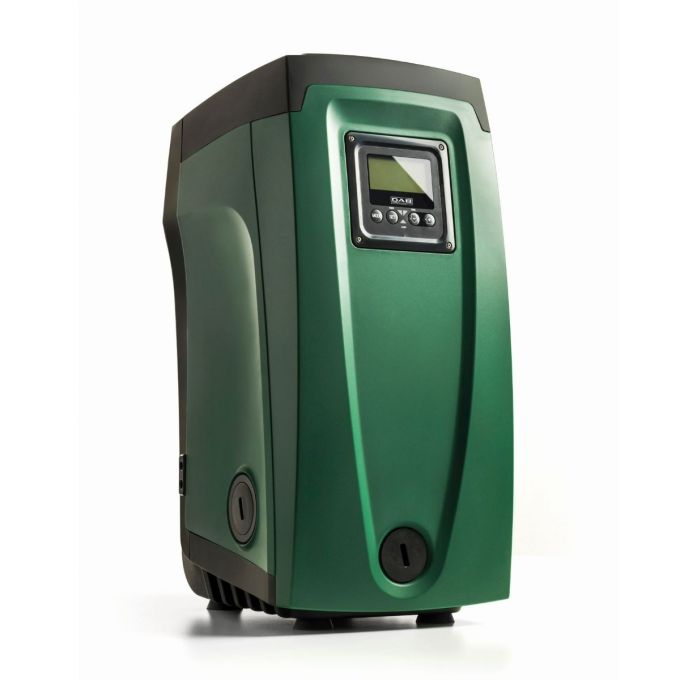

DAB - ESYBOX Electronic Water Pressure System - 230V - 120 Ltr/min - 65m Head

Name: DAB - ESYBOX Electronic Water Pressure System - 230V - 120 Ltr/min - 65m Head
Brand: Dab
SKU: DA-60147200
Price: 895.86 GBP
Availability: InStock

Part Number:

DA-60147200

Note: The above unit cannot be connected directly to a water company water supply; it must be fed by a break tank to adhere to U.K water by-laws.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,843.15 RRP £895.86 £746.55

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Note: The above unit cannot be connected directly to a water company water supply; it must be fed by a break tank to adhere to U.K water by-laws.

3 Year Warranty

The DAB ESYBOX Electronic Water Pressure System - 230V is a Pressurisation Unit item. Voltage for this item is 230V. It has an actual flow rate of 120 Ltr/min. The maximum head for this pump is 65m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 8 Bar.

Key Product Features and Use

Water cooled motor driven pump for a maximum noise level of 45dB
Multi-stage hydraulics enabling self priming up to 8m
Inverter electronics to match the pump to the system requirements and so only draws the energy necessary
Combined pressure, temperature and flow sensor
2-litre accumulator (expansion vessel)
Pipework connections to enable either vertical or horizontal installation
Check valve
Technical compartment: Access to rotor shaft, vertical filling plug, expansion vessel, maintenance tools and user guide
Antivibration feet
Anti-freeze protection device
LCD display
Operating pressure: 8 Bar.
Flow rate: 120 Ltr/min
Voltage: 230V
Maximum head: 65m

DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.

More Information
Price	£746.55
Manufacturer	Dab
Warranty	3 years guarantee
Dimensions	L565 x w265 x H352
Bars	8 bar
Electrical supply	230V
AC Power	Single Phase
Flow Rate	120 Ltr/min
Max Head	65m
Pump Type Filter	Pressurisation Unit
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	Yes
Connection Size	1 inch
Manufacturers Part Number	60161181
