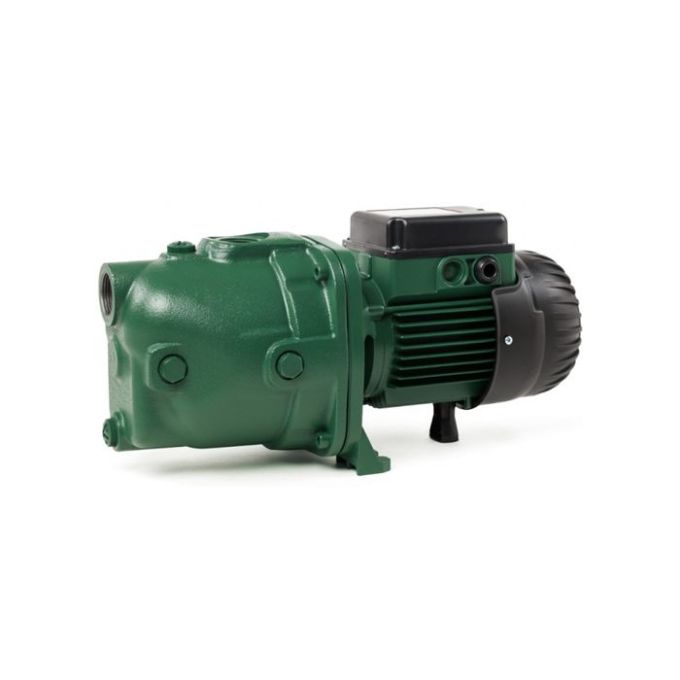

DAB - JET 82 M Self-Priming Centrifugal Pump - 240V - Single Phase - 175 Ltr/min - 62m Head

Name: DAB - JET 82 M Self-Priming Centrifugal Pump - 240V - Single Phase - 175 Ltr/min - 62m Head
Brand: Dab
SKU: 102660020
Price: 268.56 GBP
Availability: InStock

Part Number:

102660020

DAB JET are self-priming centrifugal pumps featuring an ejector/diffuser arrangement for improved priming capability.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£335.70 RRP £268.56 £223.80

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

DAB JET are self-priming centrifugal pumps featuring an ejector/diffuser arrangement for improved priming capability.

They are suitable for suction from wells (application dependent) and are supplied in different pump body materials across the range family.

Typical applications

Self-priming clean water transfer
Water supply from wells where self-priming is required (duty dependent)
General domestic and small system water movement

The DAB Jet 82 M is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.

Applied especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services and wherever self-priming operation is necessary.

Construction Includes Of The Pump

Cast Iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless Steel pressure discs.
Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a appropriate overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55
Insulation class: F

The DAB JET 82 M Self-Priming Centrifugal Pump - 240v - Single Phase - 175 Ltr/min. is a Centrifugal Pump item. Voltage for this item is 240V. It has an actual flow rate of 175 Ltr/min. The maximum head for this pump is 62m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

Flow rate: 175 Ltr/min
Water type: Clean or Discoloured
Voltage: 240V
Maximum head: 62m

Real-world product applications

Drawing water from shallow sources such as tanks and sumps
General water transfer where suction lift may be required
Supporting site drainage and utility pumping duties
Supplying water for irrigation and washdown systems
Feeding water to distribution pipework

DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.

More Information
Price	£223.80
Manufacturer	Dab
Warranty	1 year guarantee
Electrical supply	240V
AC Power	Single Phase
Flow Rate	175 Ltr/min
Max Head	62m
Water type	Clean or Discoloured
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Next Day Delivery	Yes
Manufacturers Part Number	102660020
