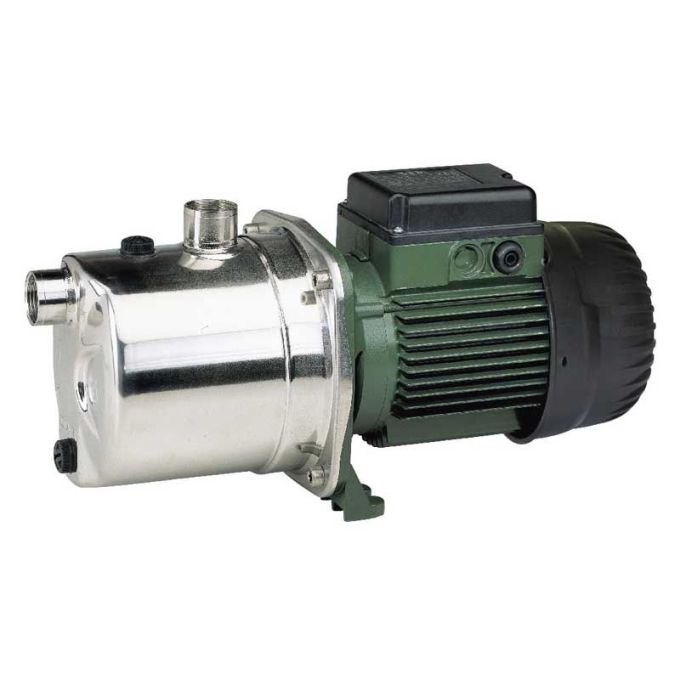

DAB - JETINOX - 102 M Self-Priming Centrifugal Pump - 240V - Single Phase - 175 Ltr/min - 62m Head

The DAB JetInox 102 M is a self-priming centrifugal pumps, engineered for pressurization, gardening and irrigation activities and underground extraction (also from wells) and rainwater reuse in residential building service.

Construction Includes Of The Pump

The pump body is in Stainless Steel. Motor support in die-cast aluminum, impeller, diffuser, venturi tube and sand-guard in technopolymer. Smoothing rings in Stainless Steel. Carbon-ceramic mechanical seal.

Construction Features Of The Motor

Asynchronous motor, closed, air-cooled. Motor shaft in AISI 416 Stainless Steel mounted on ball bearings. motor circuit breaker and capacitor incorporated in the single-phase version. In the three-phase version it is advisable to install a motor protection switch. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41).

The DAB JETINOX 102 M Self-Priming Centrifugal Pump - 240v - Single Phase - 175 Ltr/min. is a Centrifugal Pump item. Voltage for this item is 240V. It has an actual flow rate of 175 Ltr/min. The maximum head for this pump is 62m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 175 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 62m

Real-world product applications

• Drawing water from shallow sources such as tanks and sumps
• General water transfer where suction lift may be required
• Supporting site drainage and utility pumping duties
• Supplying water for irrigation and washdown systems
• Feeding water to distribution pipework
