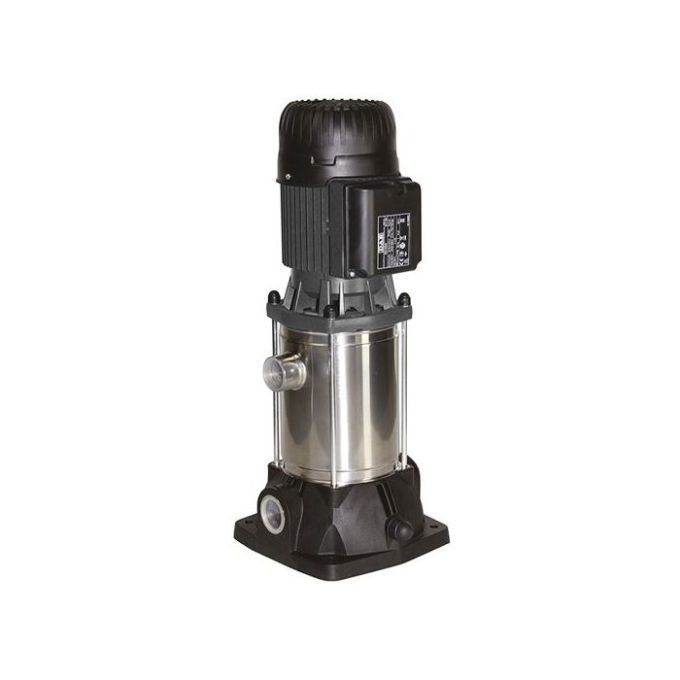

DAB - KVCX 35-120 M Centrifugal Multi-Stage Pump - 240V - Single Phase

Product Applications

The DAB KVCX 35-120 M is a Vertical multistage centrifugal pump appropriate for use in small and medium water supply installations. Appropriate for pressurization units, surge tank supply, rain irrigation and crop-dusting systems, fire-fighting and washing systems, conveyance of condensate and cooling water. InNOVAtive and robust design.

Construction Includes Of The Pump

KVC: Technopolymer discharge/suction bodies and in-line suction and discharge ports with threaded metal insert.
KVCX: technopolymer suction body with threaded metal insert; Stainless Steel threaded delivery port on pump jacket.
Impellers, diffuser bodies and diffusers in technopolymer, fully rust-proof.
Stainless Steel AISI 304 pump jacket, adjustment rings and seal disk.
Carbon/ceramic mechanical seal, fitted on the AISI 303 stainless-steel drive shaft extension.

Construction Features Of The Motor

Asynchronous, closed motor cooled by external ventilation.
Rotor mounted on oversized greased sealed-forlife ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.
Protection for the three-phase version is the responsibility of the user.
Built in CEI 2-3/CEI 61/69 (EN 60335-2-41) standards.
Level of protection: IP 55
Insulation class: F

TECHNICAL DATA

- Operating range: from 50 to 200 l/min with head up to 113 m.

- Pumped liquid: clean, free from solids or abrasive substances, not viscous, not aggressive,
not crystallised and chemically neutral and close to the characteristics of water.

- Liquid temperature range:
from 0°C to +35°C for domestic use (EN 60335-2-41 safety standards).
from 0°C to +40°C for other uses.

- Max ambient temperature: +40°C

- Max working pressure: 12 Bar. (1200 kPa).

- Installation: fixed, in vertical or horizontal position, providing that the motor is positioned
above the pump.

The DAB KVCX 35-120 M Centrifugal Multi-Stage Pump - 240v - Single Phase is a Centrifugal Pump item. Voltage for this item is 240V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Water type: Clean or Discoloured
• Voltage: 240V

Real-world product applications

• Pressure boosting for water supply systems
• Feeding distribution networks requiring higher pressure
• Supporting irrigation and washdown water delivery
• General clean-water transfer for utility systems
• Supplying water to buildings and equipment
