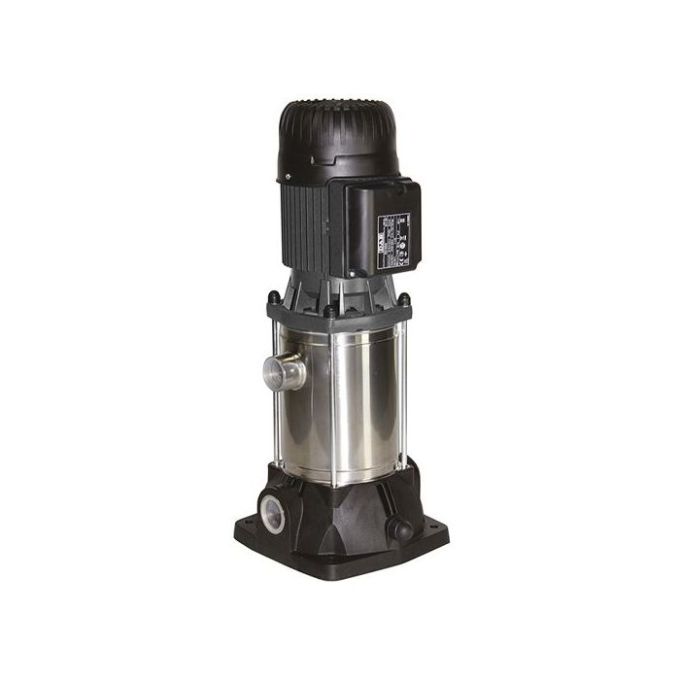

DAB - KVCX 60-120 T-IE3 Centrifugal Multi-Stage Pump - 415V - Three Phase - 400V

Name: DAB - KVCX 60-120 T-IE3 Centrifugal Multi-Stage Pump - 415V - Three Phase - 400V
Brand: Dab
SKU: 60179856
Price: 1006.46 GBP
Availability: InStock

Part Number:

60179856

Product Applications Vertical multistage centrifugal pump appropriate for use in small and medium water supply installations.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,258.07 RRP £1,006.46 £838.72

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Product Applications

Vertical multistage centrifugal pump appropriate for use in small and medium water supply installations. Appropriate for pressurization units, surge tank supply, rain irrigation and crop-dusting systems, fire-fighting and washing systems, conveyance of condensate and cooling water. InNOVAtive and robust design.

Construction Includes Of The Pump

KVC: Technopolymer discharge/suction bodies and in-line suction and discharge ports with threaded metal insert.
KVCX: technopolymer suction body with threaded metal insert; Stainless Steel threaded delivery port on pump jacket.
Impellers, diffuser bodies and diffusers in technopolymer, fully rust-proof.
Stainless Steel AISI 304 pump jacket, adjustment rings and seal disk.
Carbon/ceramic mechanical seal, fitted on the AISI 303 stainless-steel drive shaft extension.

Construction Features Of The Motor

Asynchronous, closed motor cooled by external ventilation.
Rotor mounted on oversized greased sealed-forlife ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.
Protection for the three-phase version is the responsibility of the user.
Built in CEI 2-3/CEI 61/69 (EN 60335-2-41) standards.
Level of protection: IP 55
Insulation class: F

The DAB KVCX 60-120 T-IE3 Centrifugal Multi-Stage Pump - 415v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

Water type: Clean or Discoloured
Voltage: 400V

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.

More Information
Price	£838.72
Manufacturer	Dab
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Water type	Clean or Discoloured
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Next Day Delivery	No
Manufacturers Part Number	60179856
